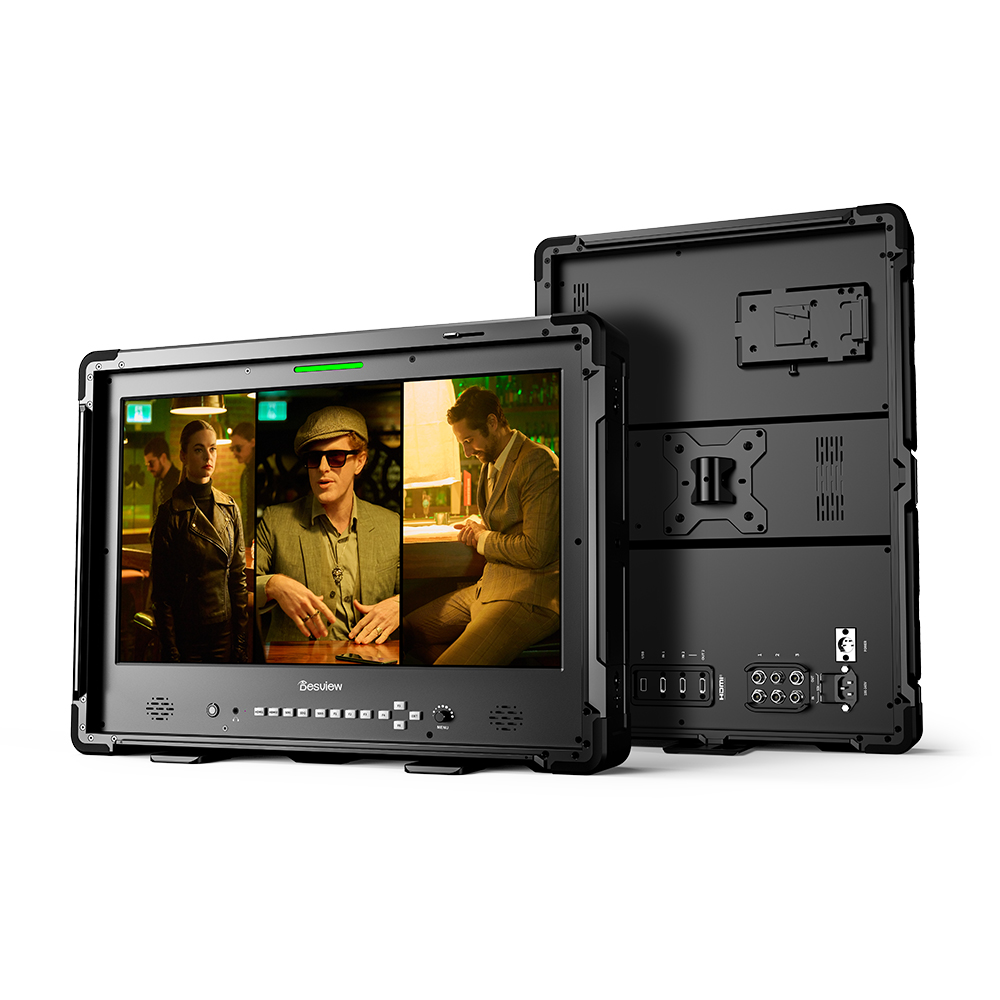

Multi-view Monitoring Mode
Both Horizontal and Vertical are Pro Level

The screen can be set to dual, triple, and quad-view, supporting picture-in-picture mode to meet different monitoring needs
*Call path: Main menu→Input settings→Multi-window

The Fortress on the Set , Protect the Image

3-second Quick-release Design, Efficiency Innovation
Sliding cover is ready to use out of the box, quickly responding to shooting needs

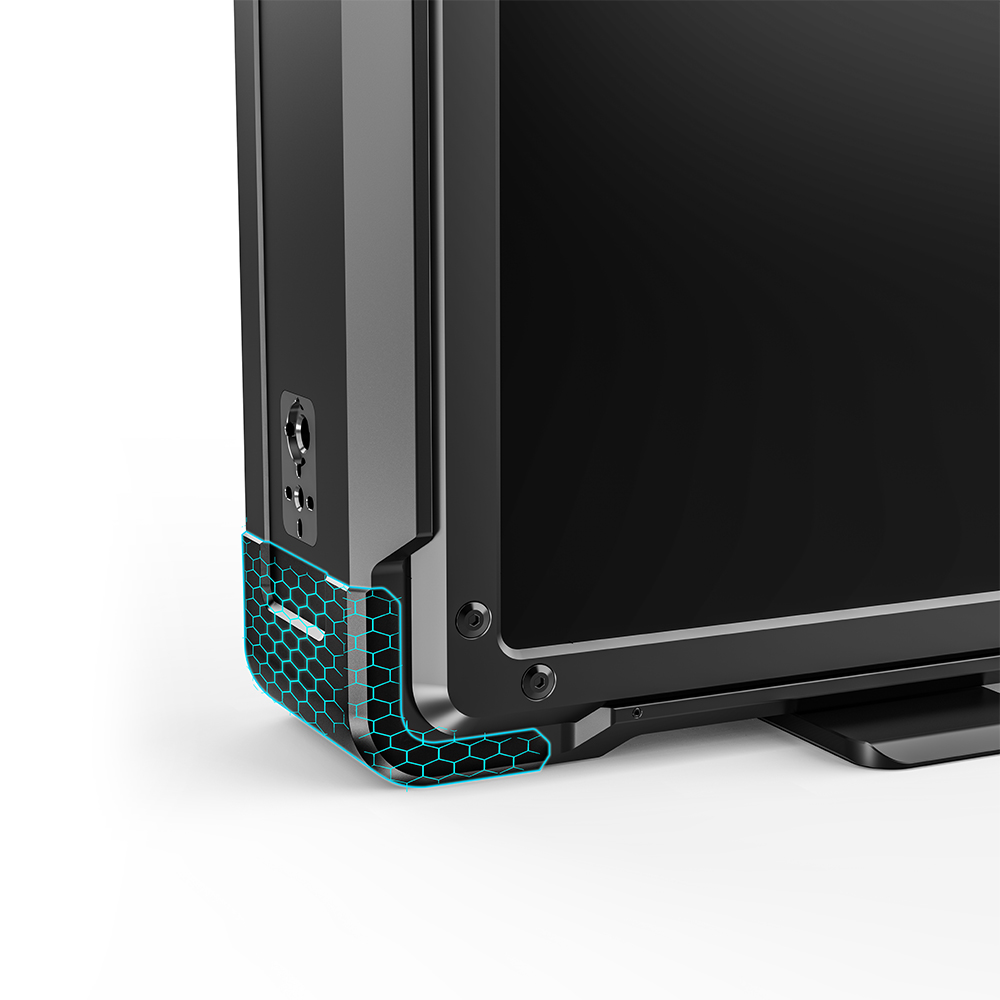

Hardcore Protection, Fearless of Extreme Environments
Military-grade anti-collision corner guards, buffering 1.5-meter vertical drop impact
*Data from Desview Laboratory

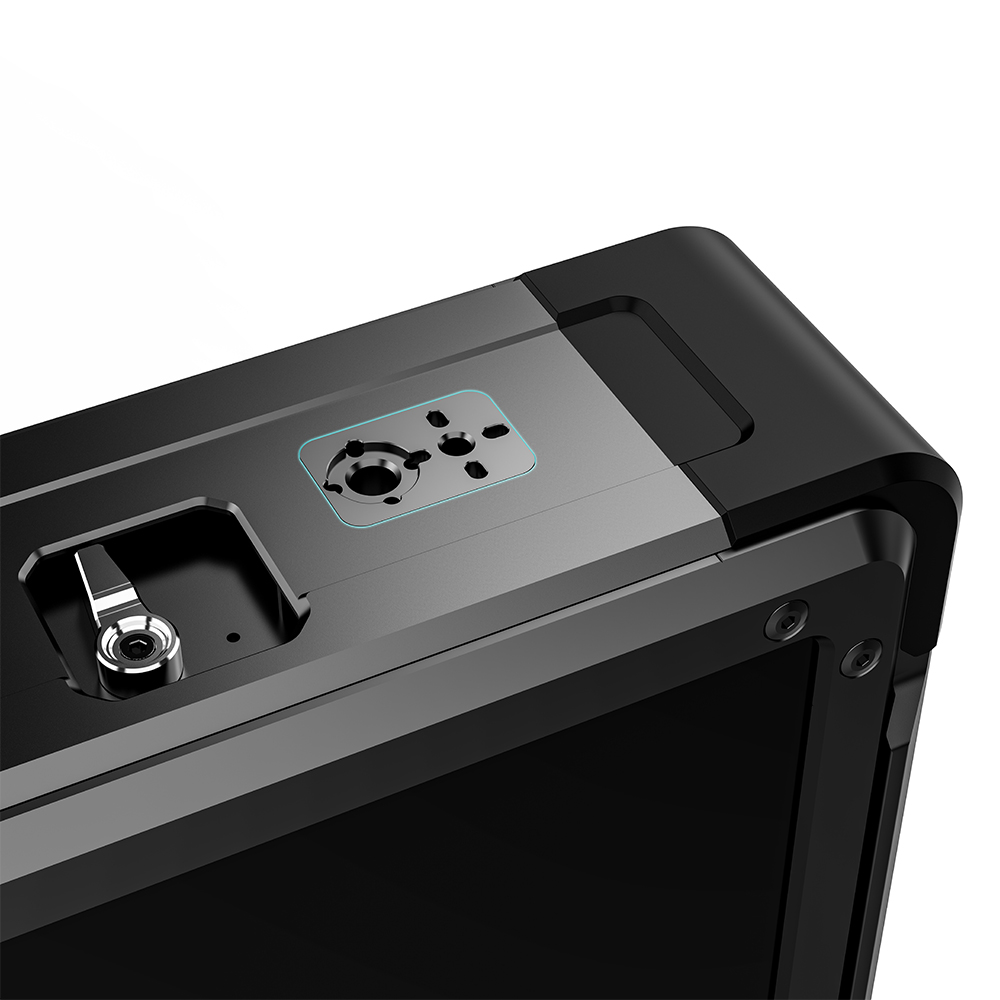

Multi-mounting Point Design, Ecological Expansion
External 1/4", 3/8 Allegro screw group
Wireless video transmission, lighting, etc. can be installed in seconds.

Pressure-resistant Protective Housing
Adopts multi-layer composite pressure-resistant material, which can withstand up to 80KG load-bearing capacity, no fear of complex environment on the set.

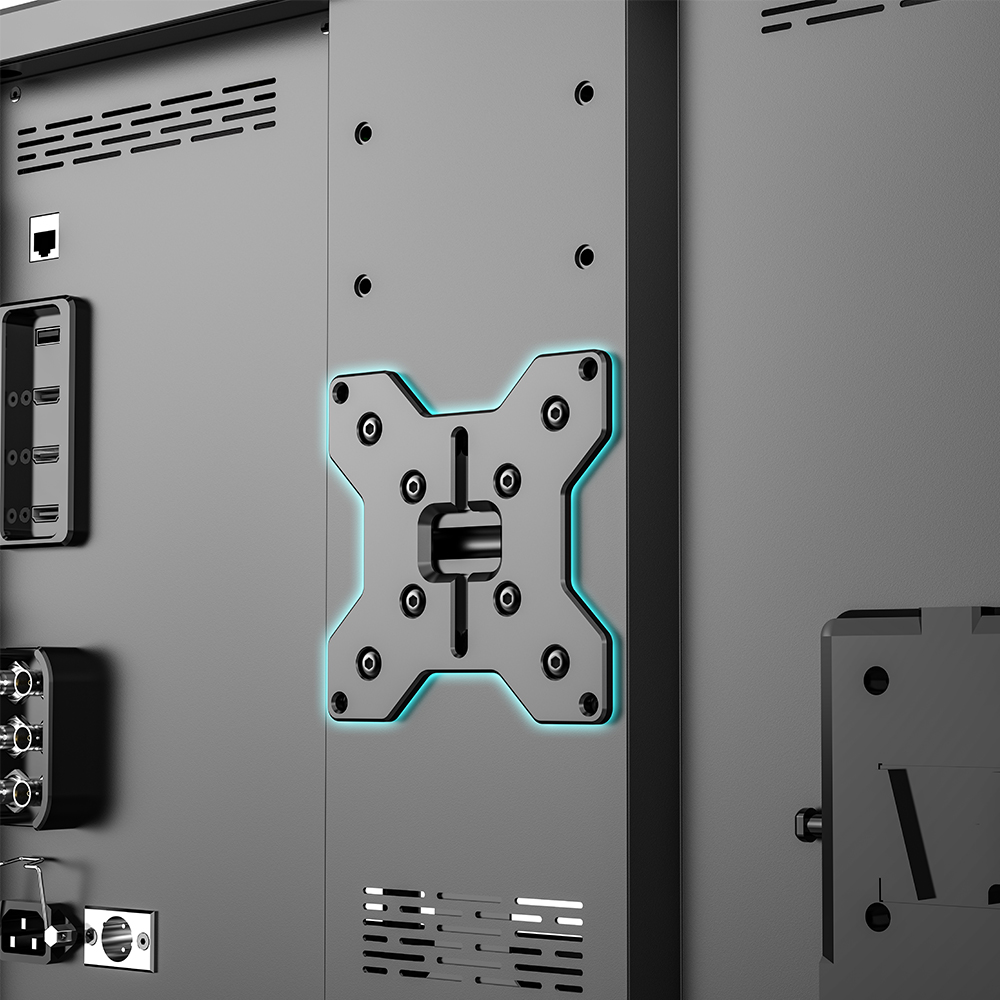

VESA Mount, Efficient Transfer Monitoring
VESA mount, supports quick installation of light stand, provides fast and stable monitoring guarantee for film shooting/live broadcast/multi-camera transition.

Effective Monitoring, Innovative Experience

•Single Window, Independent Control
When multiple windows are used, the color temperature, brightness, contrast, hue saturation, clarity, distortion, and flip of each window can be adjusted separately

•Restore the Anamorphic Wide-screen
Supports 1.33X, 1.6X, 2.0X, 2.35X and other mainstream anamorphic lenses to unlock wide-screen aesthetics in real time on set, saying goodbye to time-consuming blind guessing in post-production anti-squeezing.

•Horizontal and Vertical Cropping
The combination of hardware rotation, multi-display split screen, and professional monitoring tools achieves seamless connection between horizontal and vertical view shooting, becoming the core technical support for film shooting, especially short film and creator content

•9:16 Composition Mark Ratio
You can set 9:16 composition mark ratio in a single window to facilitate post-production video creation

•Support SDI Channel Selection
When using SDI input, you can set the channel options for playback

•Camera Position Reminder
Supports the camera position reminder function, which is beneficial to the crew's shooting management and greatly improves the shooting efficiency

Dual Interface Collaboration
Double Guarantee of Efficiency and Reliability

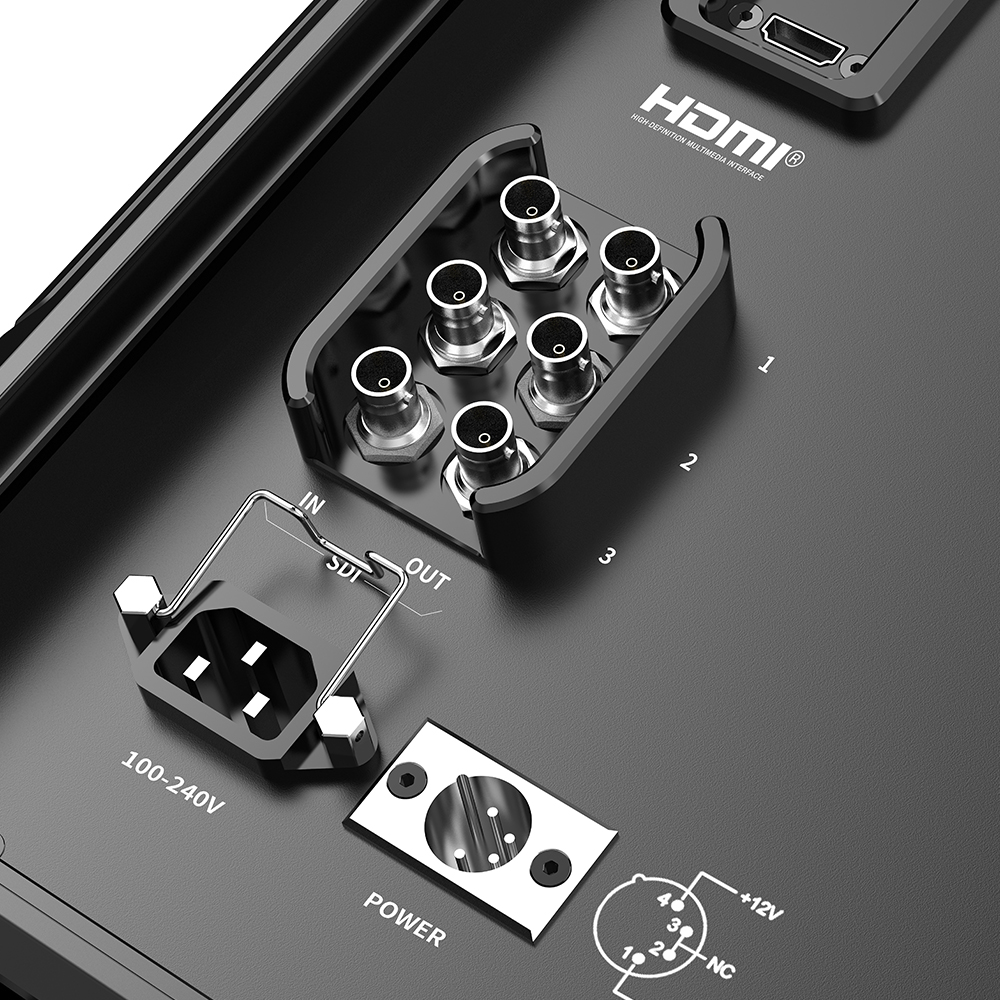

Provide three SDI input/loop output, providing flexibility and diversity for your creation.

3G-SDI IN /OUT *3,

Professional-grade SDI Interface, Stable Transmission and Multi-device Collaboration.

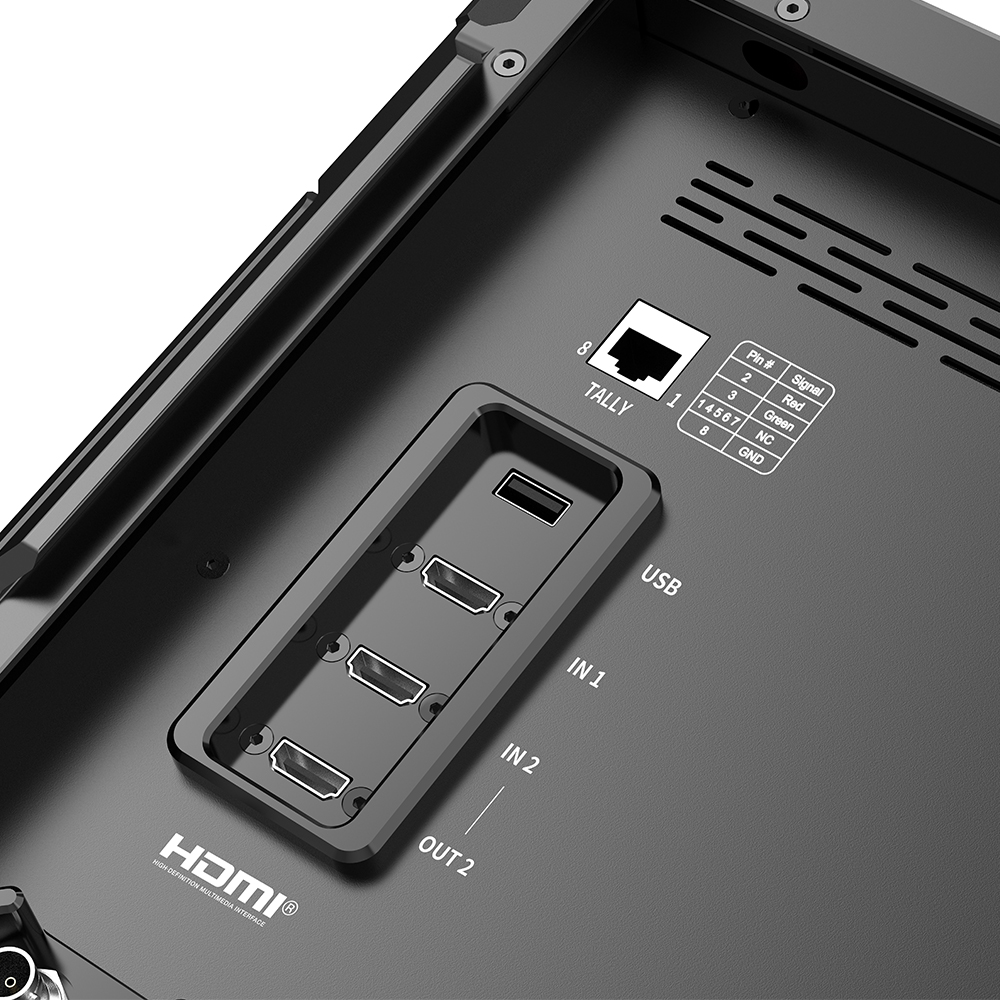

Full-scenario HDMI Interface, High-resolution Compatible and Flexible Adaptation
4K 60p Input *2 /Output*1

Full Waveform Monitoring, SDI and HDMI Dual Coverage

Supports full waveform monitoring in SDI and HDMI signal source, frame-level data visualization, exposure and color control, injecting certainty into efficient creation.

Custom 3D-LUT,

Set Your Cinematic Style Directly

Built-in LUTS with various styles, supports importing custom LUTS, and defines your own creative movie style.

Color Mastery and True Restoration

21.5-inch IPS professional 10-bit display panel, supports 33x33x33 hardware 3D-LUT, can achieve real-time and accurate color calibration, and restore true colors to the greatest extent.

Power Adaption for All Acenarios, Unlimited Shooting

•V-mount battery power supply: outdoor shooting
•Direct connection with a power cord: indoor studio shooting
•XLR charging for emergency: transition shooting

Monitor body * 1

USB drive * 1

Pin-shaped power cord * 1
HDMI cable * 1
Cleaning cloth * 1
Instruction manual + Warranty card * 1

Aluminum alloy

+

Composite material

AC 100V-240V (50Hz/60Hz)


Airline plug

DC 12-24V


V-mount battery power supply
