🌟Key features:
✔️5.5inch High Definition LCD Display
✔️302g Lightweight Design
✔️13.2mm Ultra-Thin Housing
✔️10Bit (8+2FRC) Higher Display Color Depth
✔️100% Rec.709 Film Industry Color Gamut
✔️Customizable 3D-LUT
✔️1000Nits Brightness
✔️4K 60p HDMI Input and Output
✔️Support Power Supply via DC, Type-C and NP-F Battery

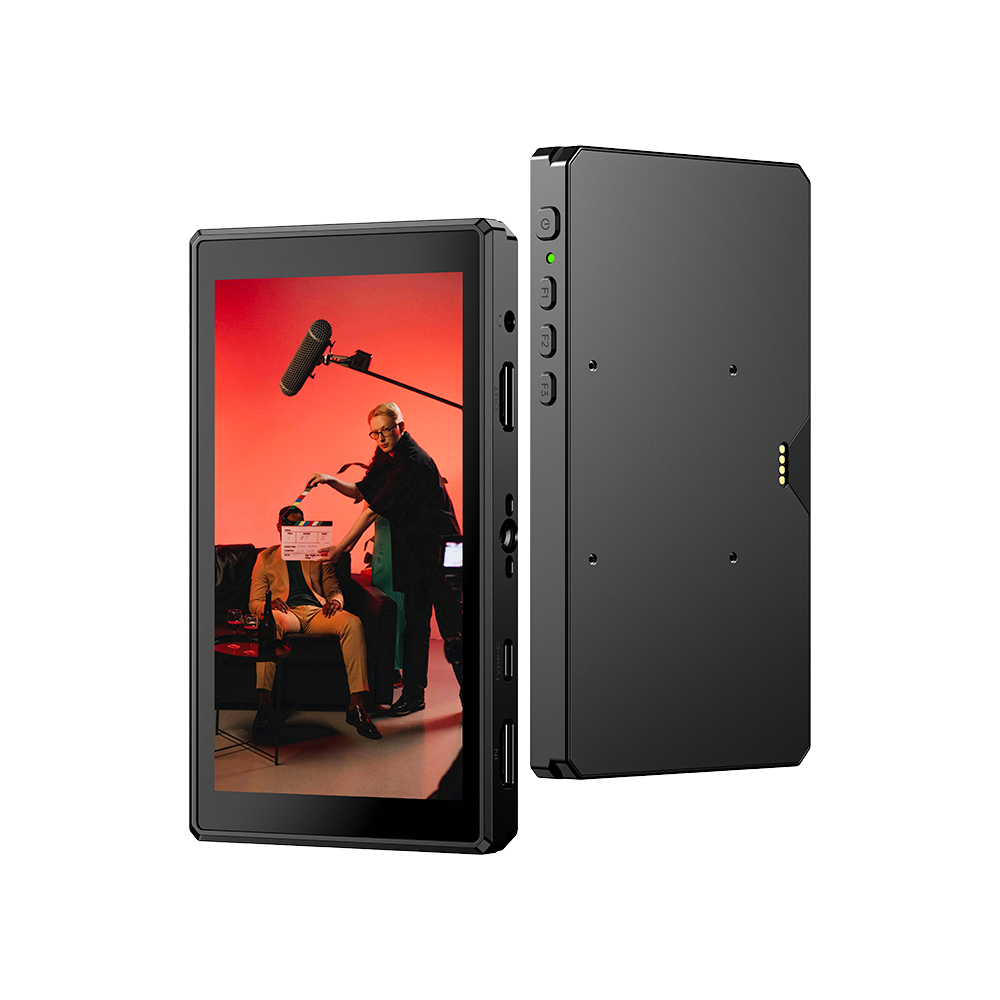

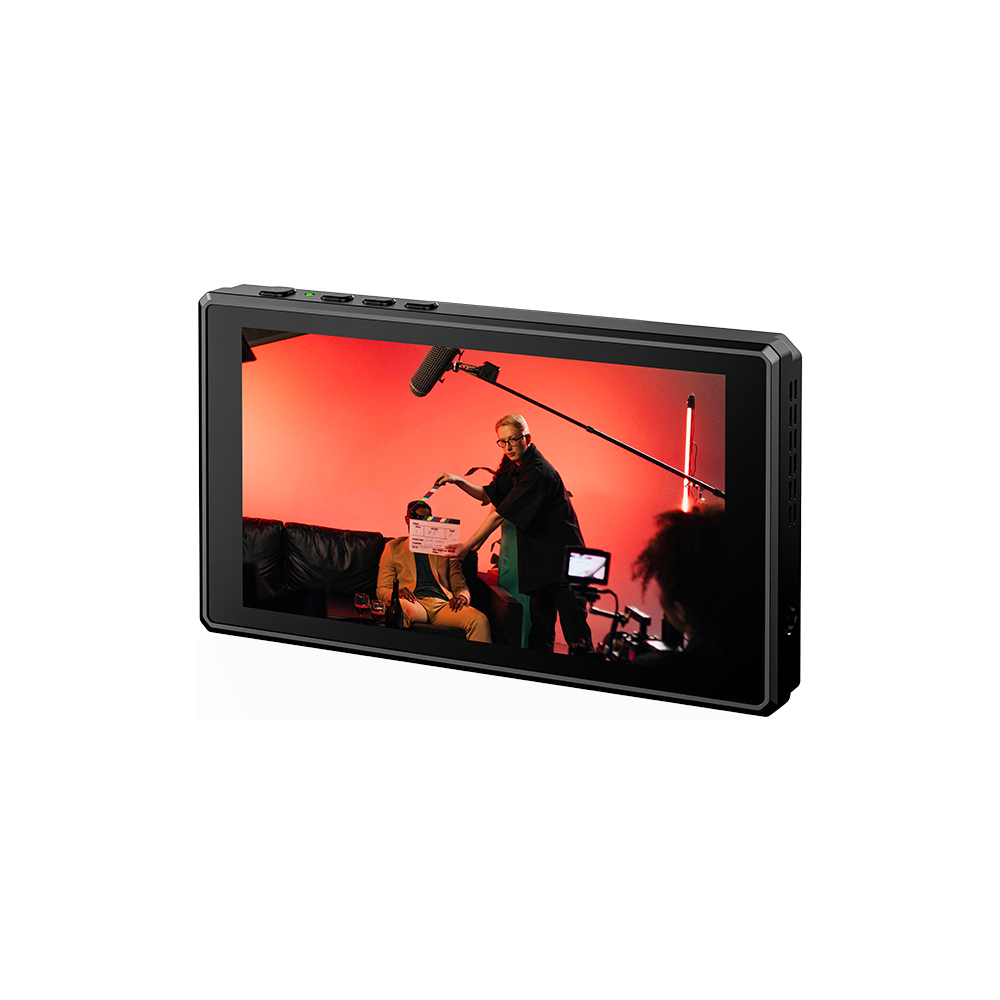

Blade 5

Contact Us

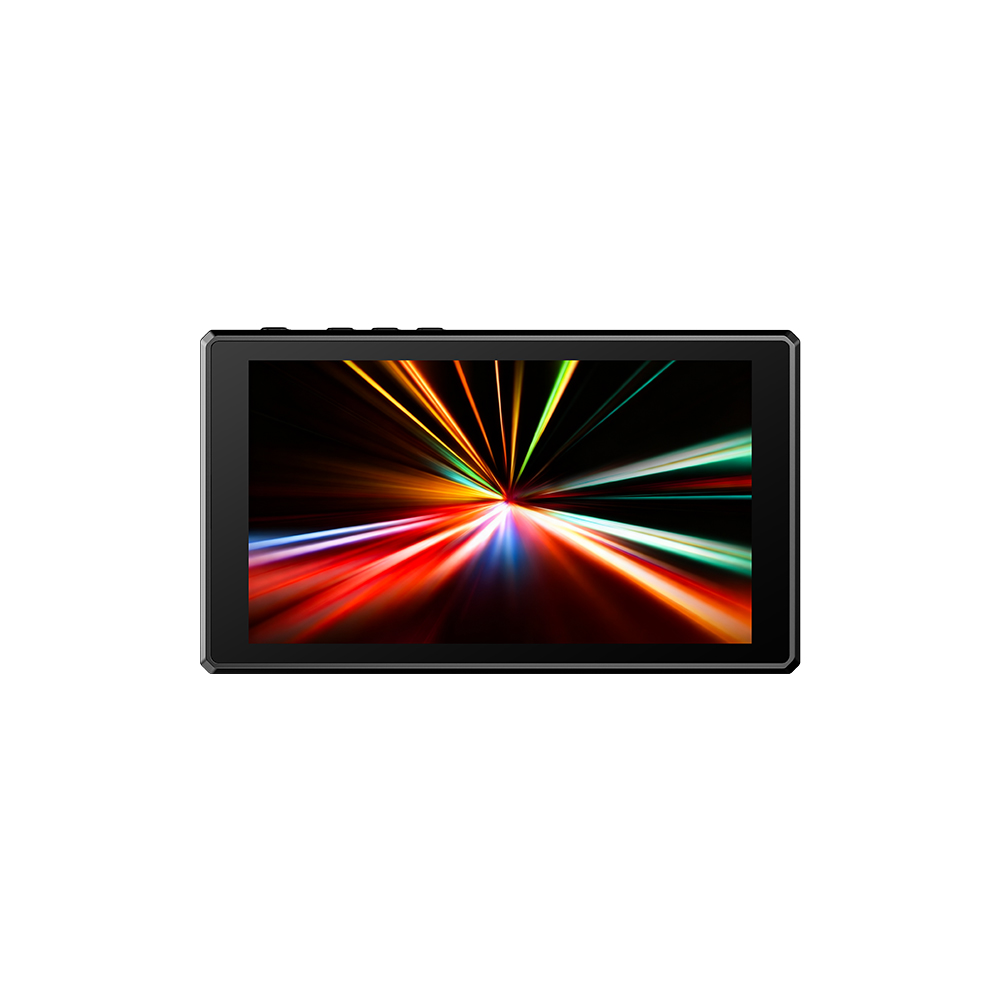

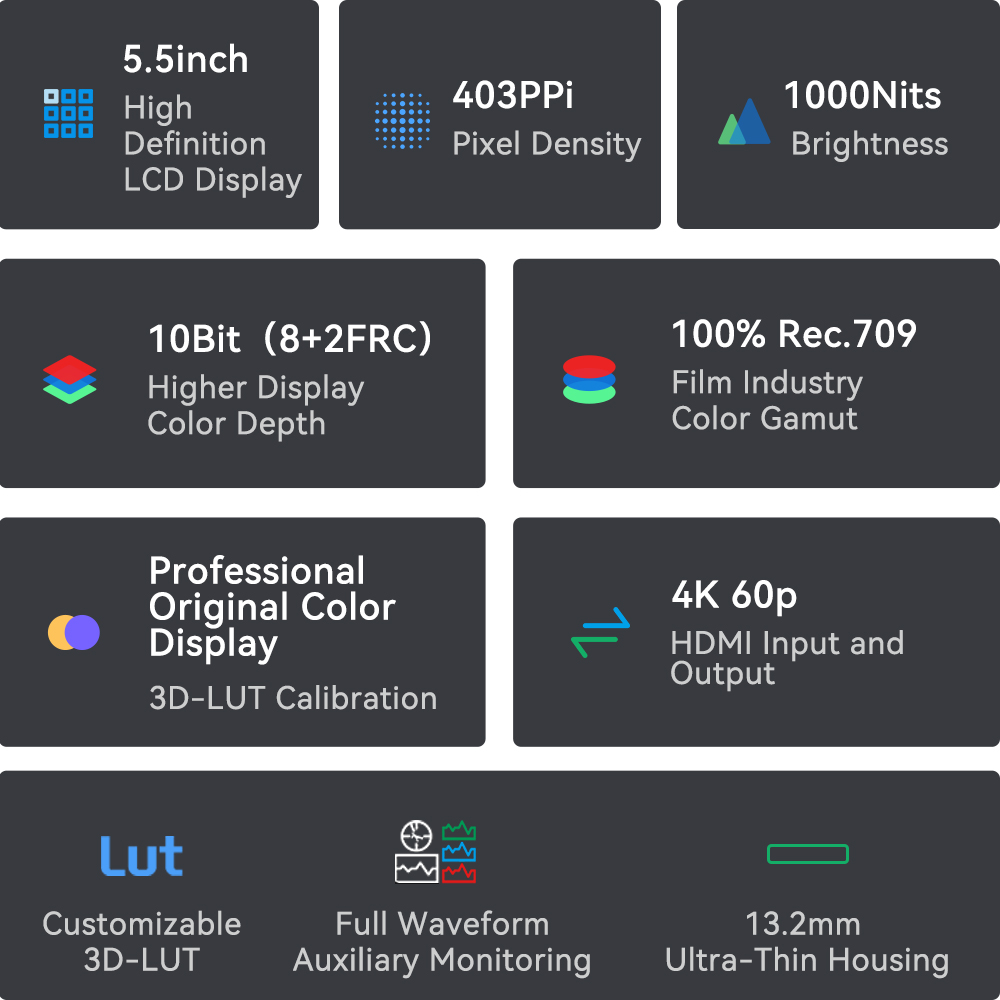

5.5inch High Definition LCD Display
403PPI Pixel Density
1000Nits Brightness
10Bit(8+2FRC) Higher Display Color Depth
100% Rec.709 Film Industry Color Gamut
3D-LUT Calibration
4K 60p HDMI Input and Output
Customizable 3D-LUT
Full Waveform Auxiliary Monitoring
13.2mm Ultra-Thin Housing

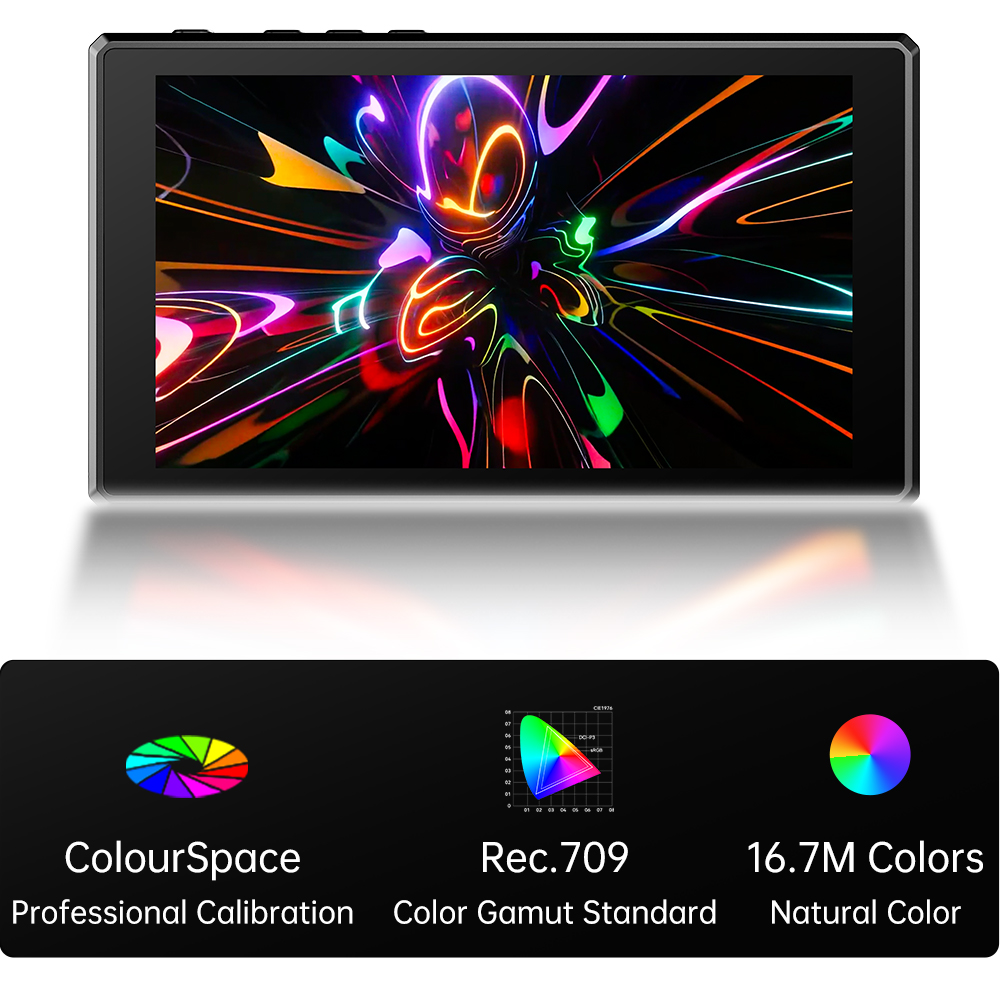

Outstanding Performance,
As You See It

Each display undergoes precise calibration to ensure accurate color reproduction. The display covers 100% Rec.709 color gamut with a wide 160° viewing angle, preserving the true colors from any perspective.

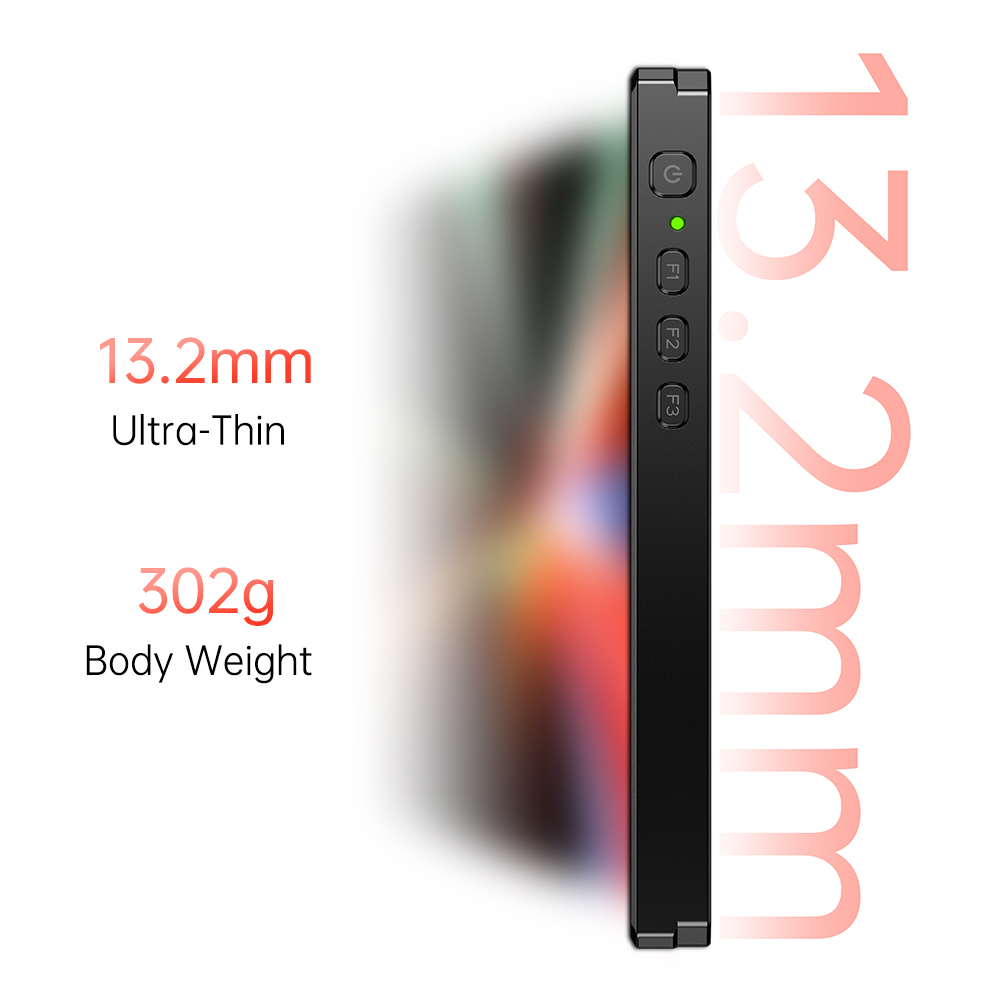

Ultra-Thin Aluminum Alloy Structure
The 13.2mm Ultra-thin and lightweight aluminum alloy body allows you to create without the burden of weigh.

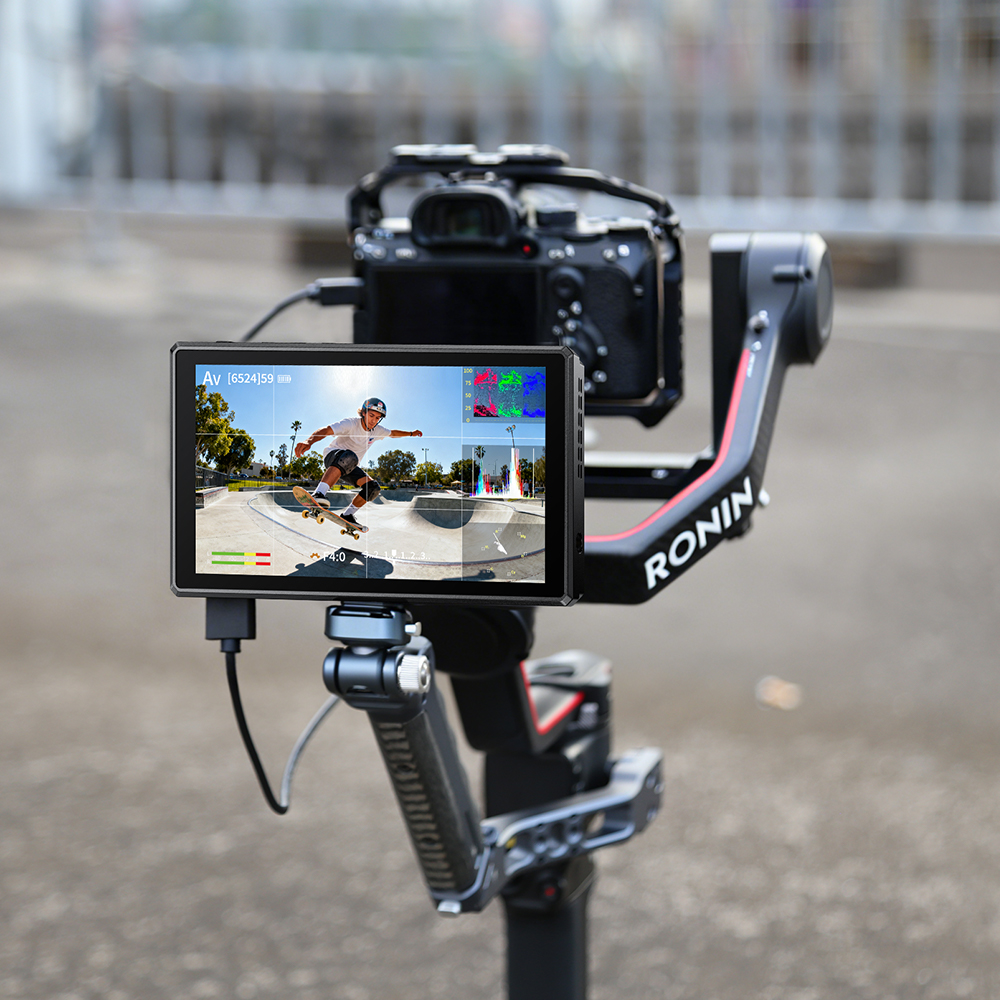

The Ultimate Camera-Mounted Monitor
With its compact size and outstanding viewing performance, the Blade 5 is all you need.

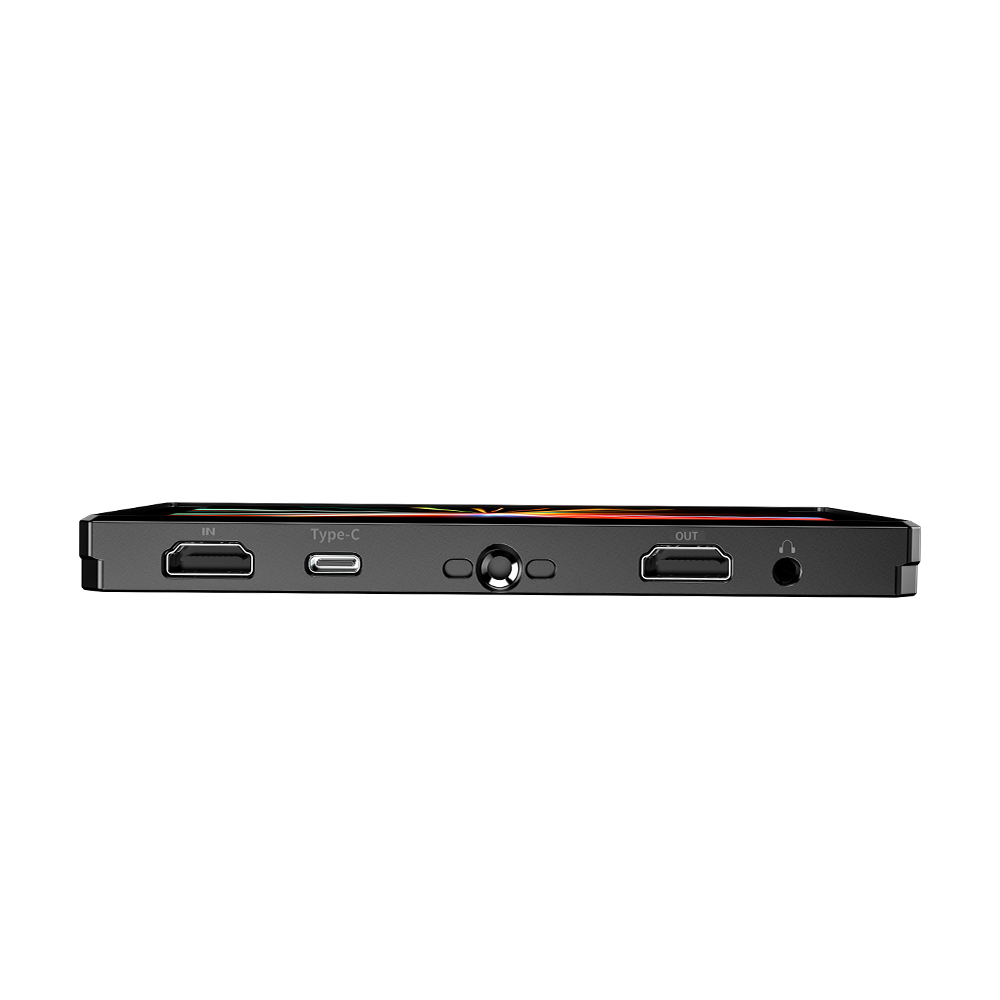

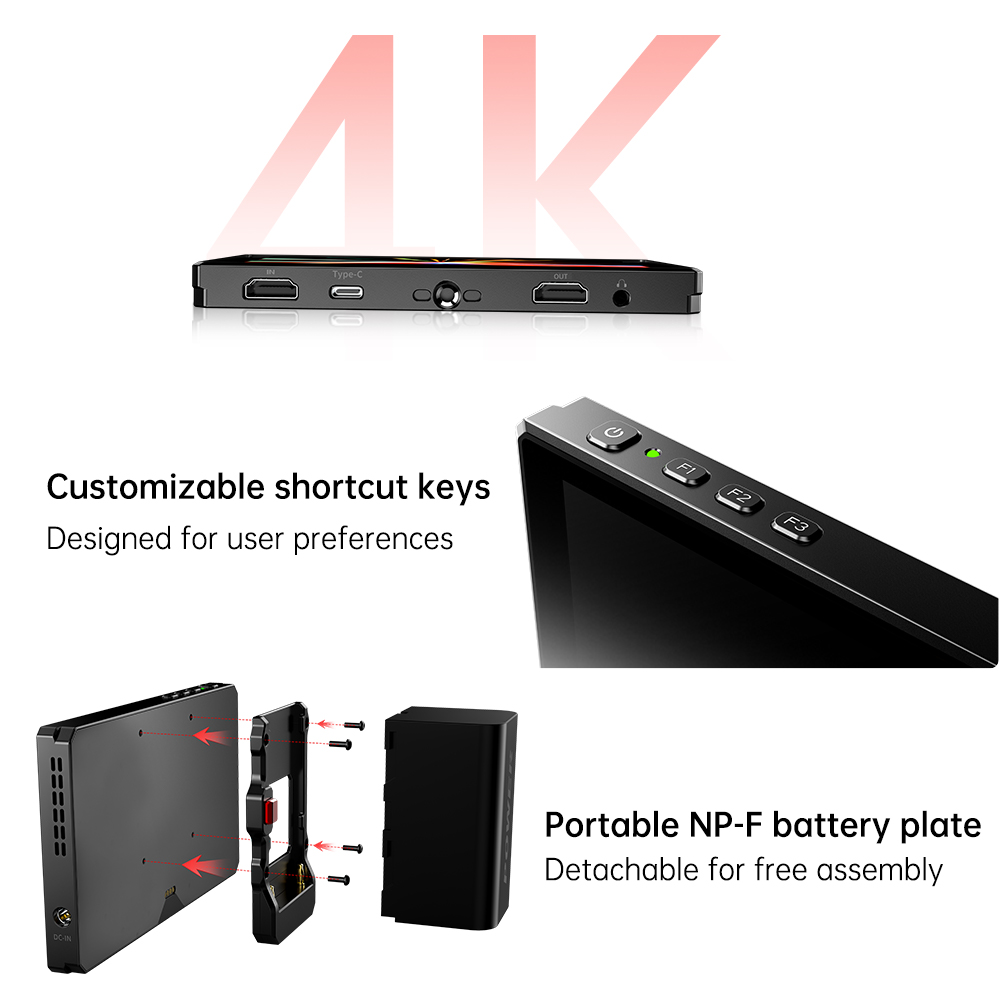

4K Lossless High-Definition Transmission
It supports 4K HDMI 60p signal input / loopout, ensuring lossless high-definition transmission. It provides a clear and smooth HD monitoring experience for shooting, meeting the needs of professional filming.

Customizable 3D-LUT Styles

Load up to about 64 customizable LUT files via a Type-C USB drive, allowing you to preview different stylistic color effects instantly and enhance work efficiency.

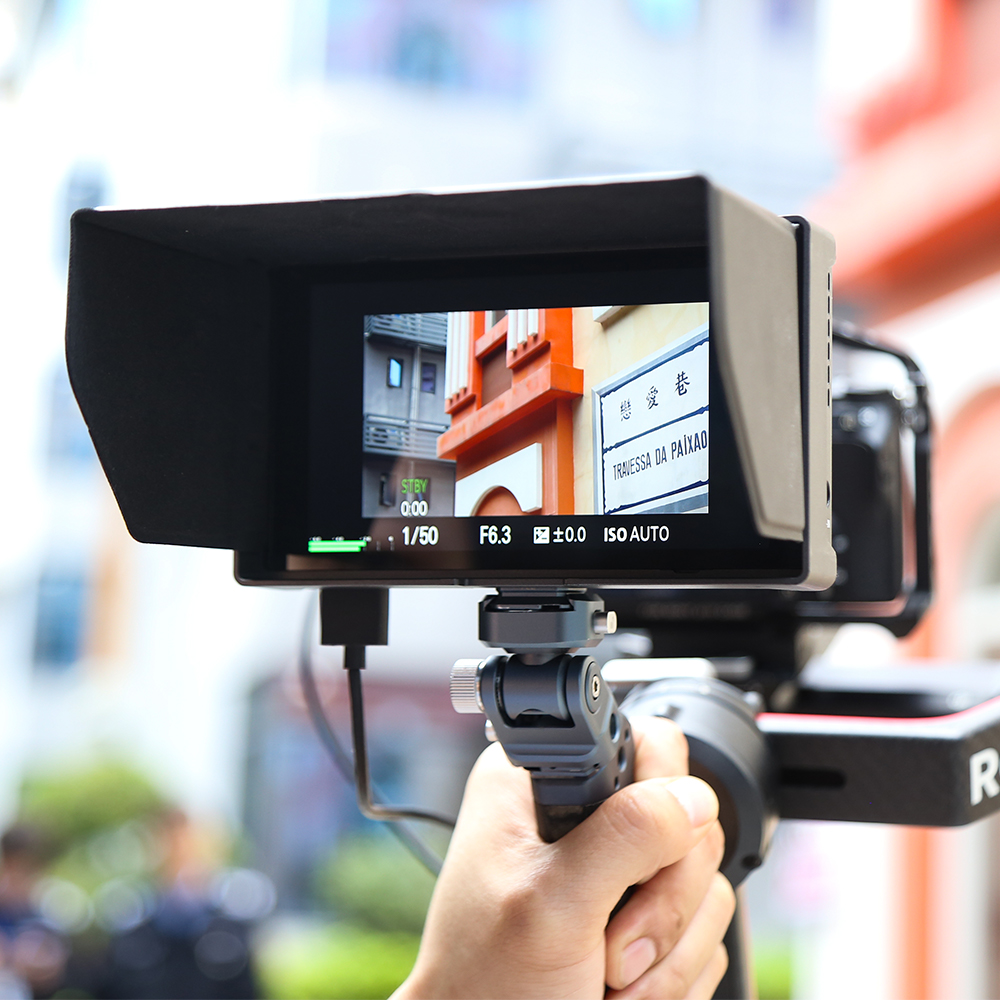

Quick-Detach Sunshade,
No Fear of Bright Light

With a detachable sunshade design, it can be quickly removed or attached in just a second. When shooting outdoors, it effectively blocks light sources from interfering with the display, ensuring a good viewing experience.

Pocket-Sized Photography Monitor
The 5.5-inch monitor offers a perfect size, with an ergonomic design for comfortable handling. It's easy to hold with one hand and fits easily into your pocket for convenient on-the-go use, allowing you to set up a professional shooting platform in seconds.

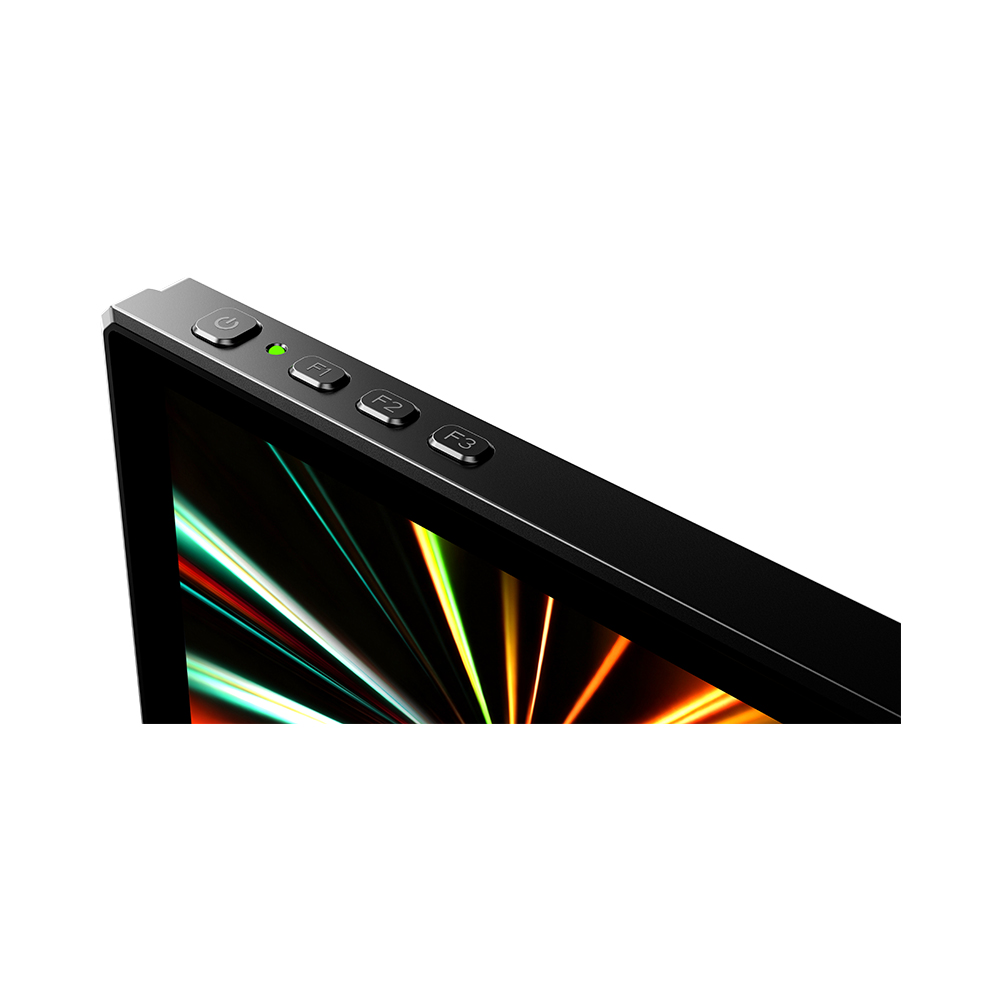

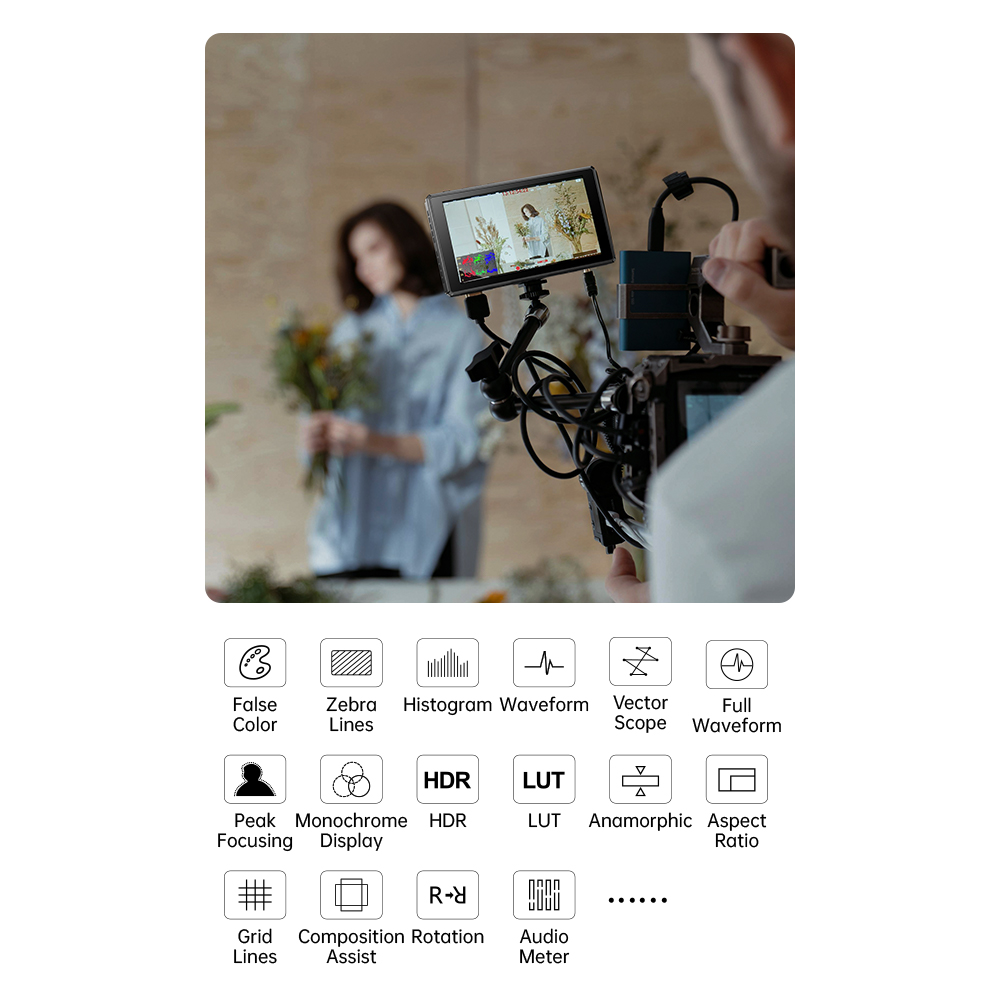

Intuitive Control at Your Fingertips
Offering comprehensive monitoring auxiliary functions, the circular display provides a more delicate and precise view. It effectively assists photographers in exposure control and brightness management during the shooting process, enhancing shooting efficiency and the quality of the final footage.

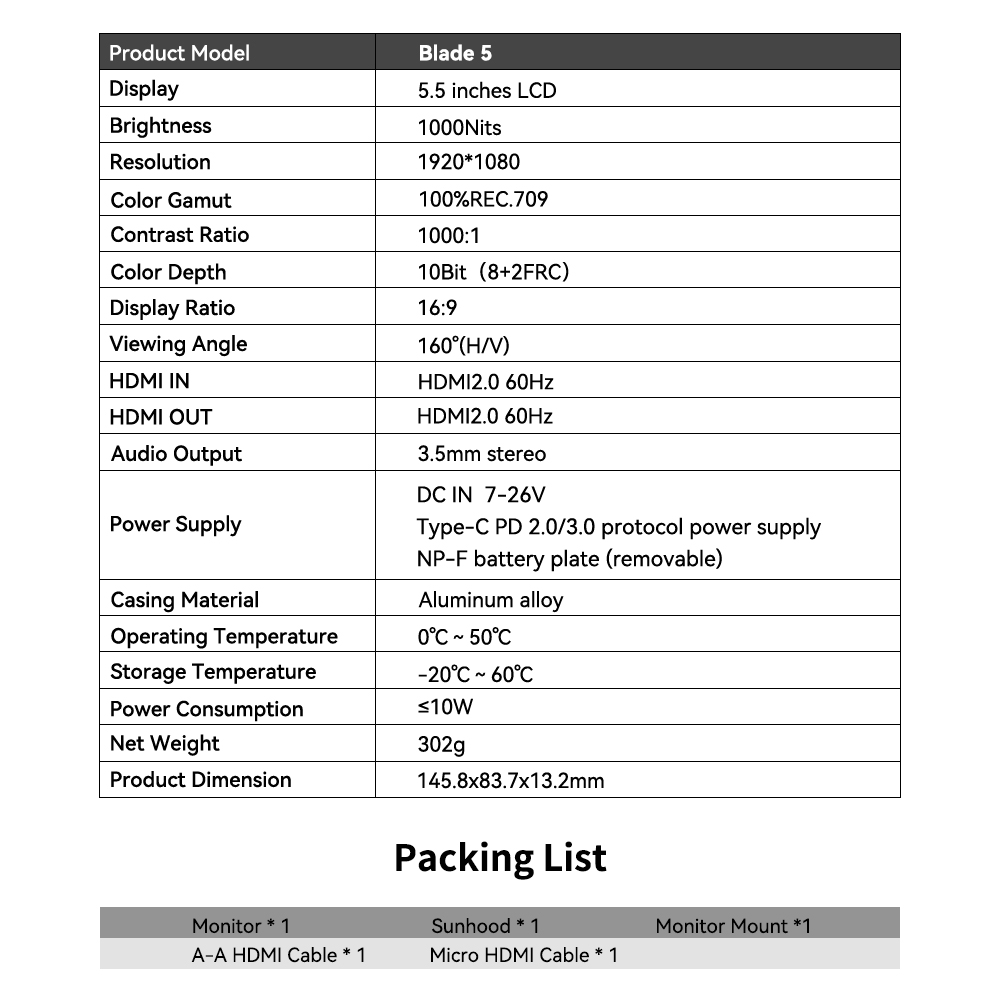

Product Specification



   Product Parameters
Product Model Blade 5
Display 5.5 inches LCD
Brightness 1000Nits
Resolution 1920x1080
Color Gamut 100%REC.709
Contrast Ratio 1000:1
Color Depth 10Bit (8+2FRC)
Display Ratio 16:9
Viewing Angle 160° (H/V)
HDMI IN HDMI2.0 60Hz
HDMI OUT HDMI2.0 60Hz
Audio Output 3.5mm stereo

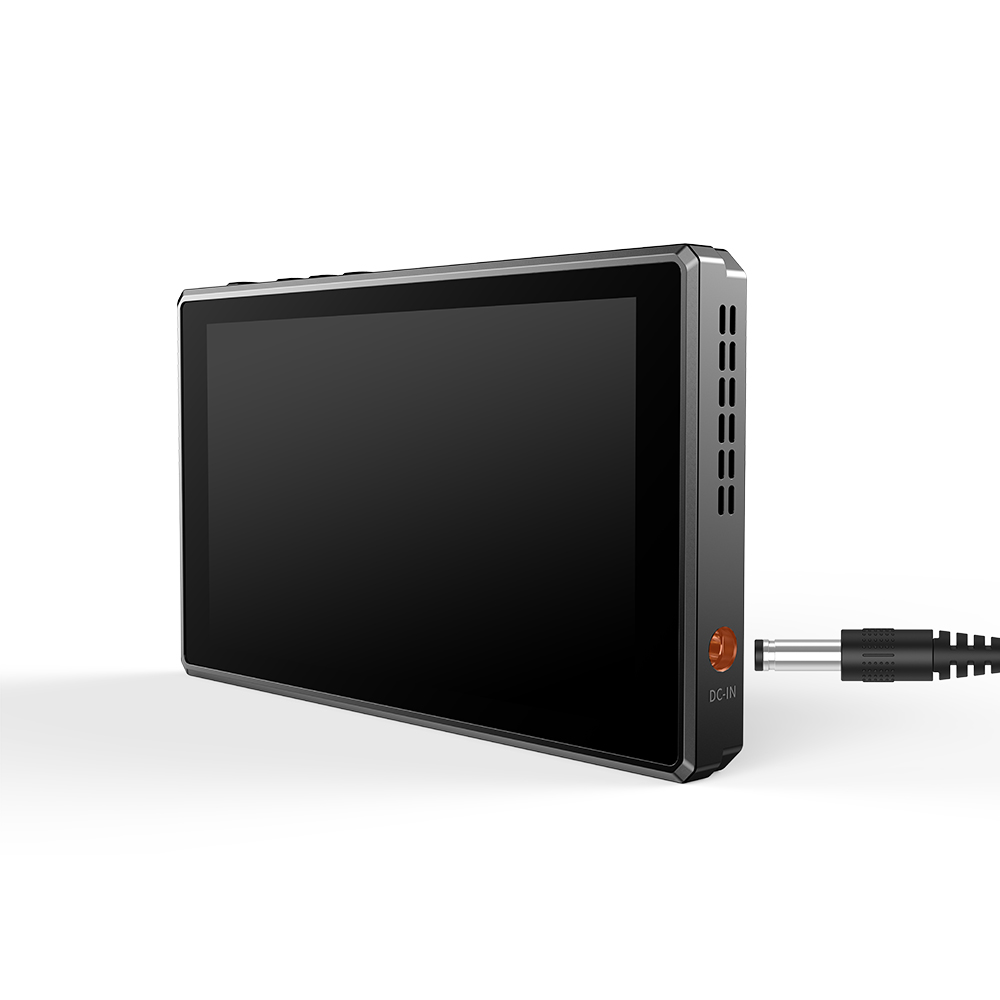

Power Supply DC IN 7-26V
Type-C PD 2.0/3.0 protocol power supply

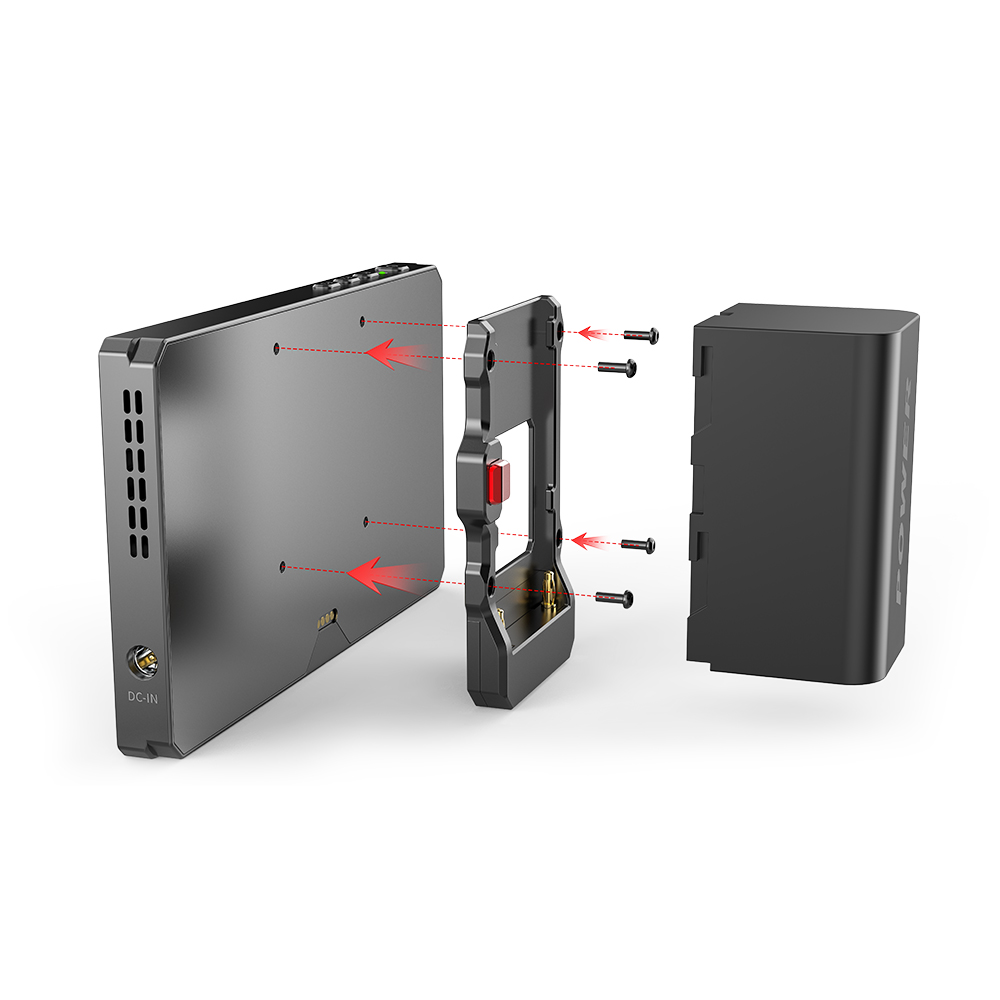

NP-F battery plate (removable)
Casing Material Aluminum alloy
Operating Temperature 0℃~50℃
Storage Temperature -20℃~60℃
Power Consumption ≤10W
Net Weight 302g
Product Dimension 145.8x83.7x13.2mm
Packing List

Monitor * 1

Sunhood * 1

Monitor Mount *1
A-A HDMI Cable * 1

Micro HDMI Cable * 1
