🌟Key features:
✔️5.5inch Flagship OLED Display
✔️207g Ultra-Light and 13mm Ultra-Thin Design
✔️Customizable 3D-LUT
✔️100000:1 Ultra-High Contrast Ratio
✔️100%DCI-P3 Color Gamut
✔️1200Nits Peak Brightness
✔️4K 60p HDMI Input and Output
✔️Support Power Supply via DC, Type-C and NP-F Battery

Blade 5 Pro

Contact Us

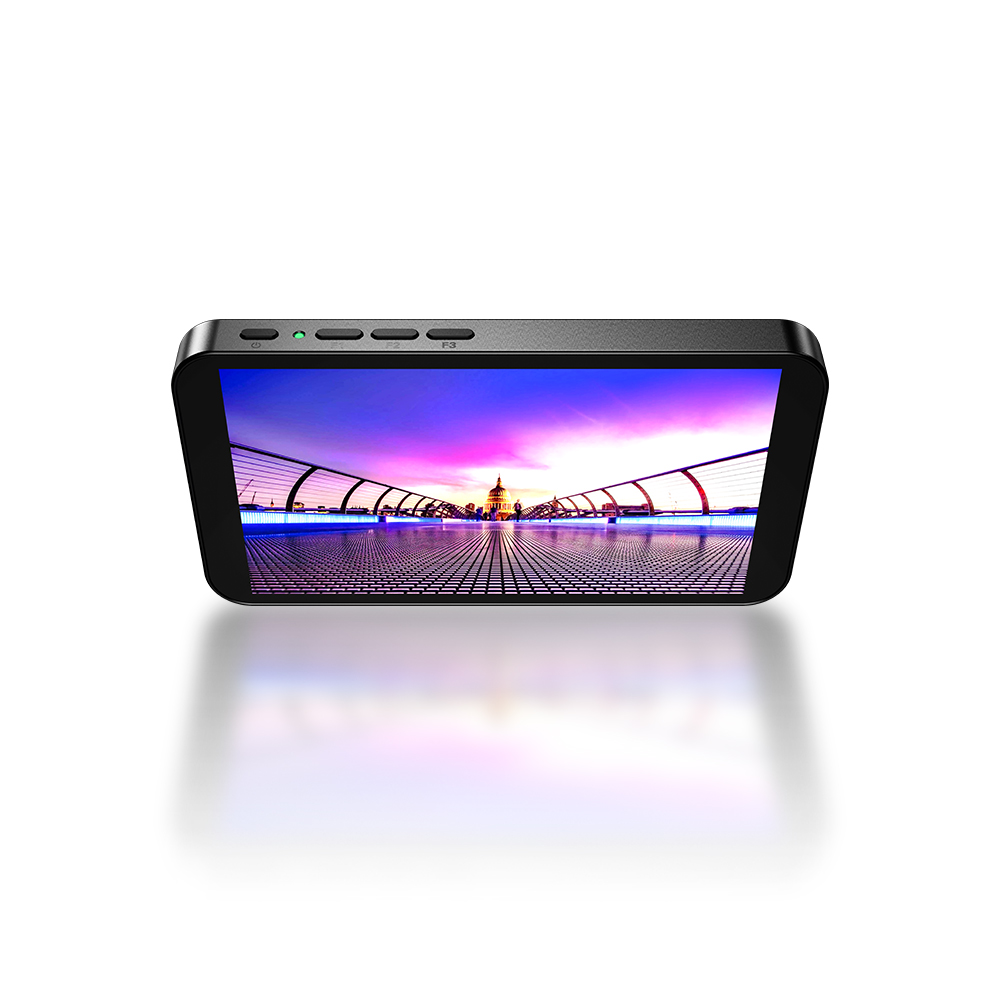

5.5-inch Flagship OLED Display
1200Nits Peak Brightness
100000:1 Ultra-High Contrast Ratio
100%DCI-P3 Color Gamut
Ultra-Thin Aluminum
Alloy Design

Lightweight Body, One-Hand Grip

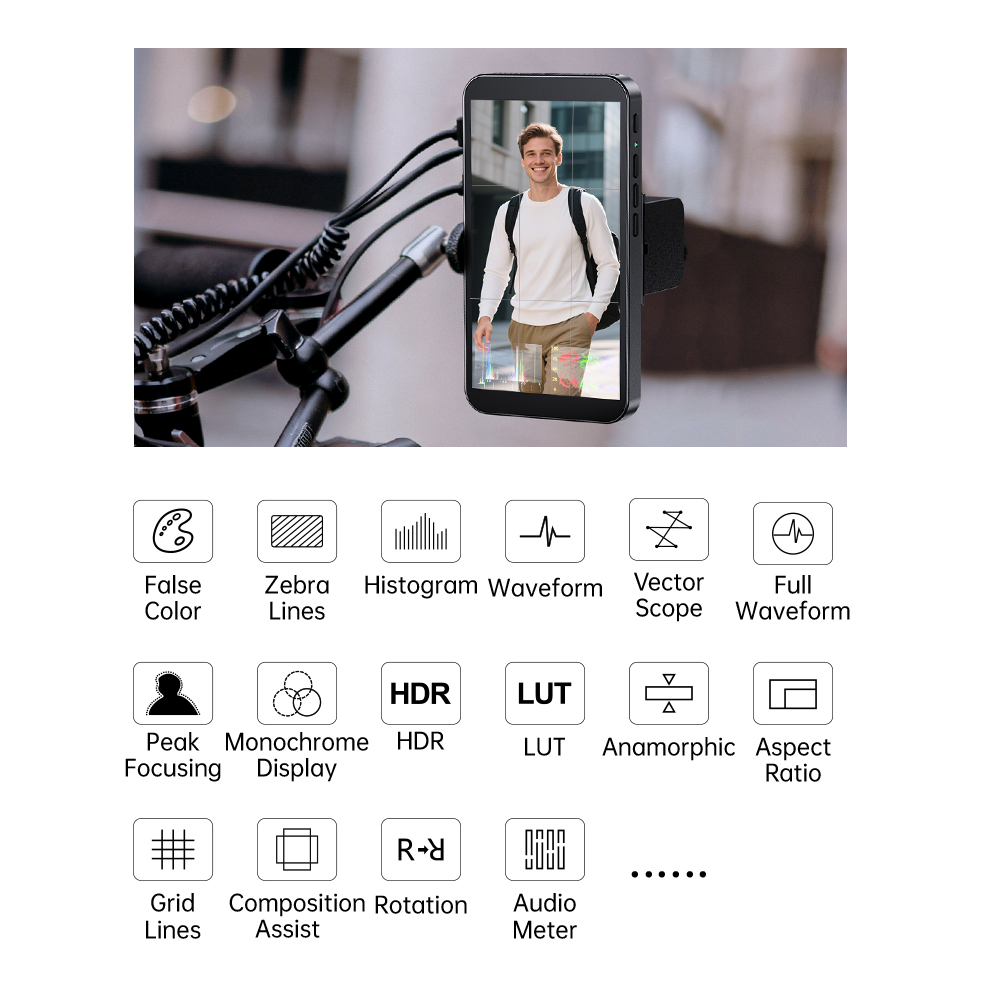

Comprehensive Auxiliary Functions

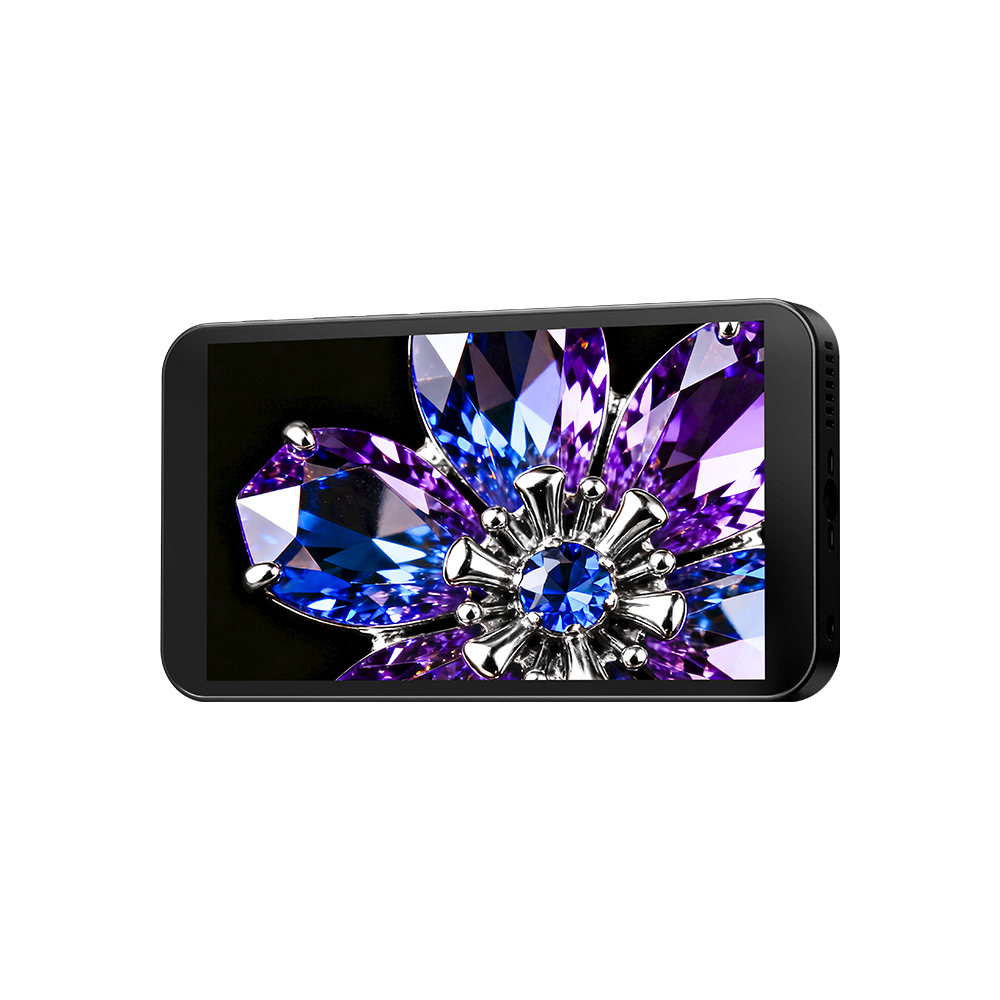

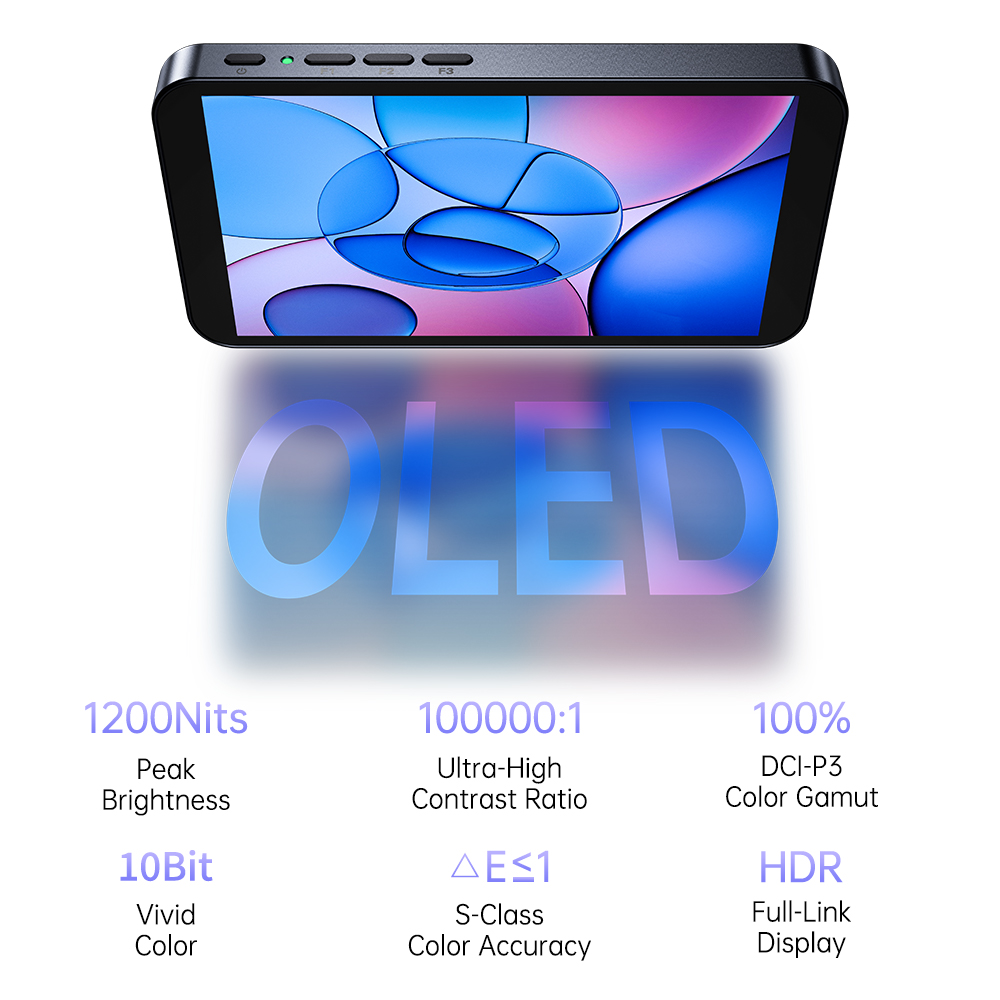

A Revolutionary OLED Viewing World,
Every Detail Revealed

Blade 5 Pro is equipped with an OLED professional display, featuring a 100000:1 contrast ratio and 100% DCI-P3 color gamut coverage, restoring every subtle color gradations of light and shadow, showing deep blacks and clean highlights.

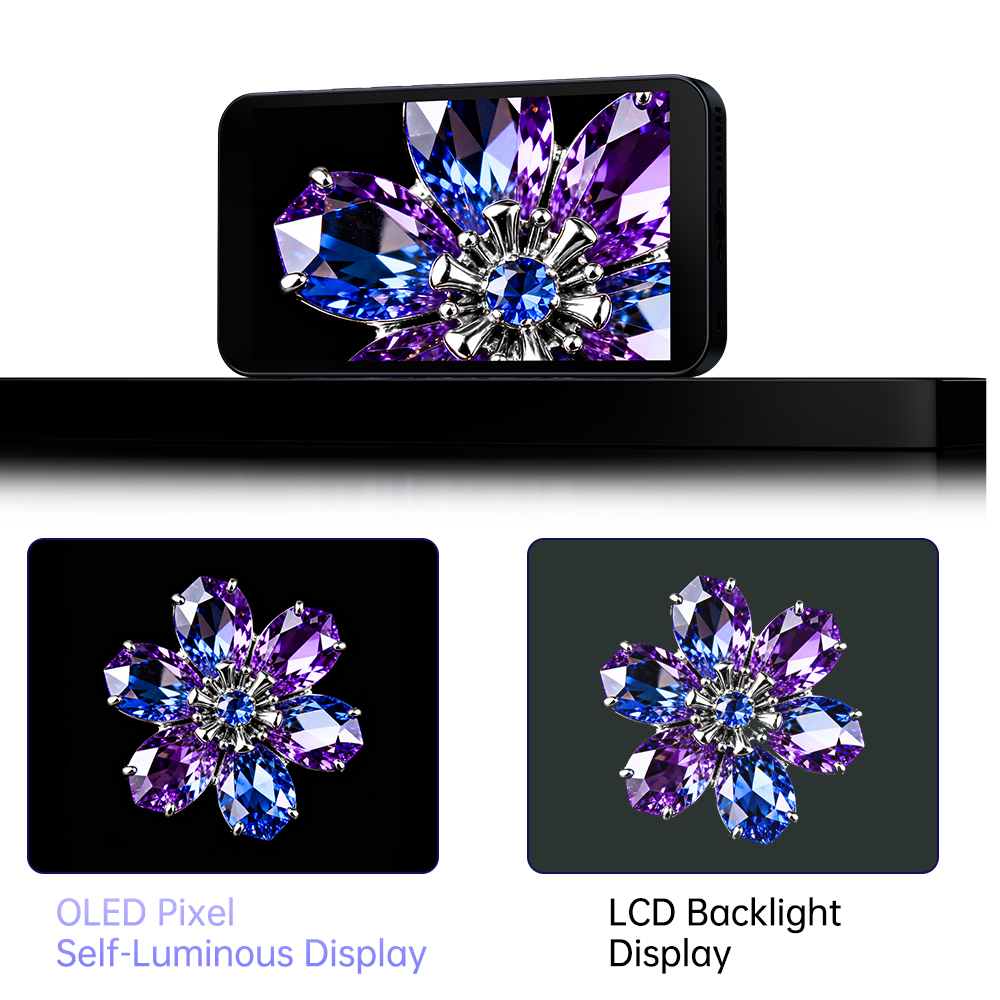

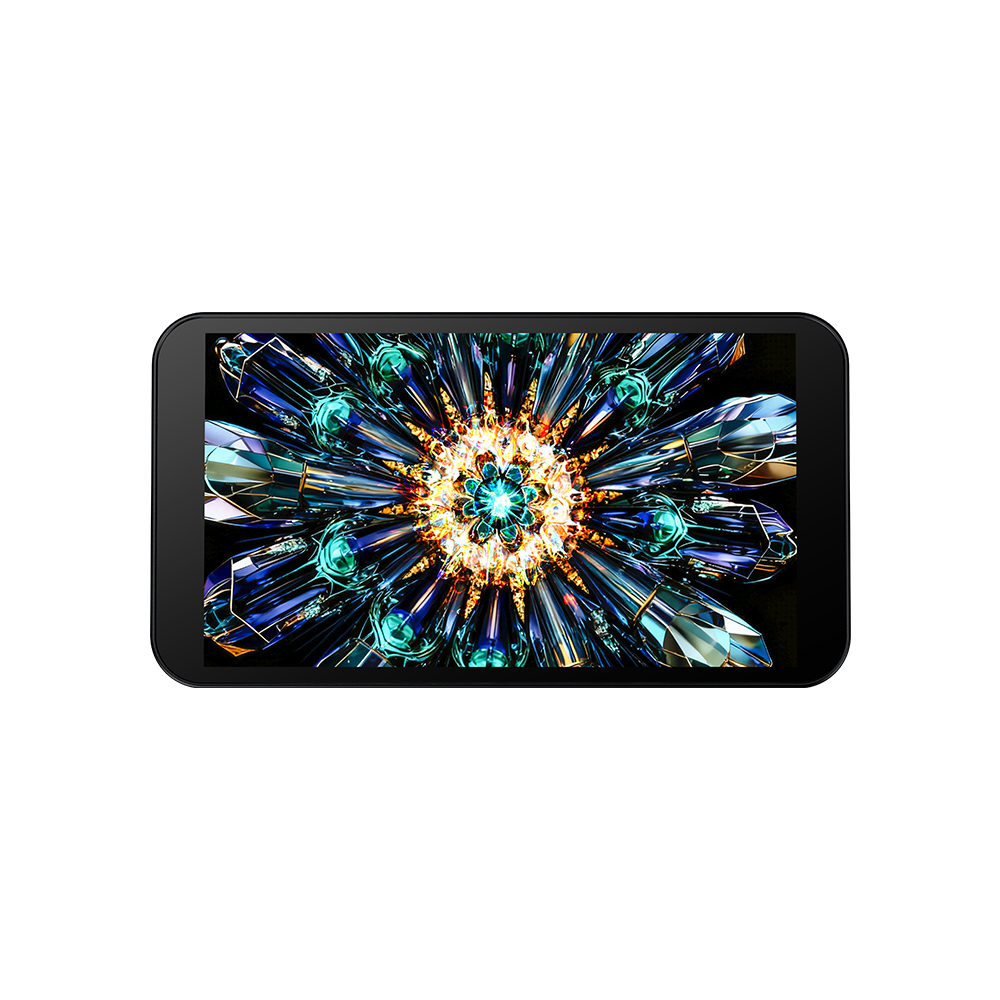

Ultimate Black Performance
Deep Blacks, Brilliant Brights

With each pixel lights up independently, OLED sculpts every gradation from deep black to brilliant highlight, letting vivid colors explode against an ink-black canvas.

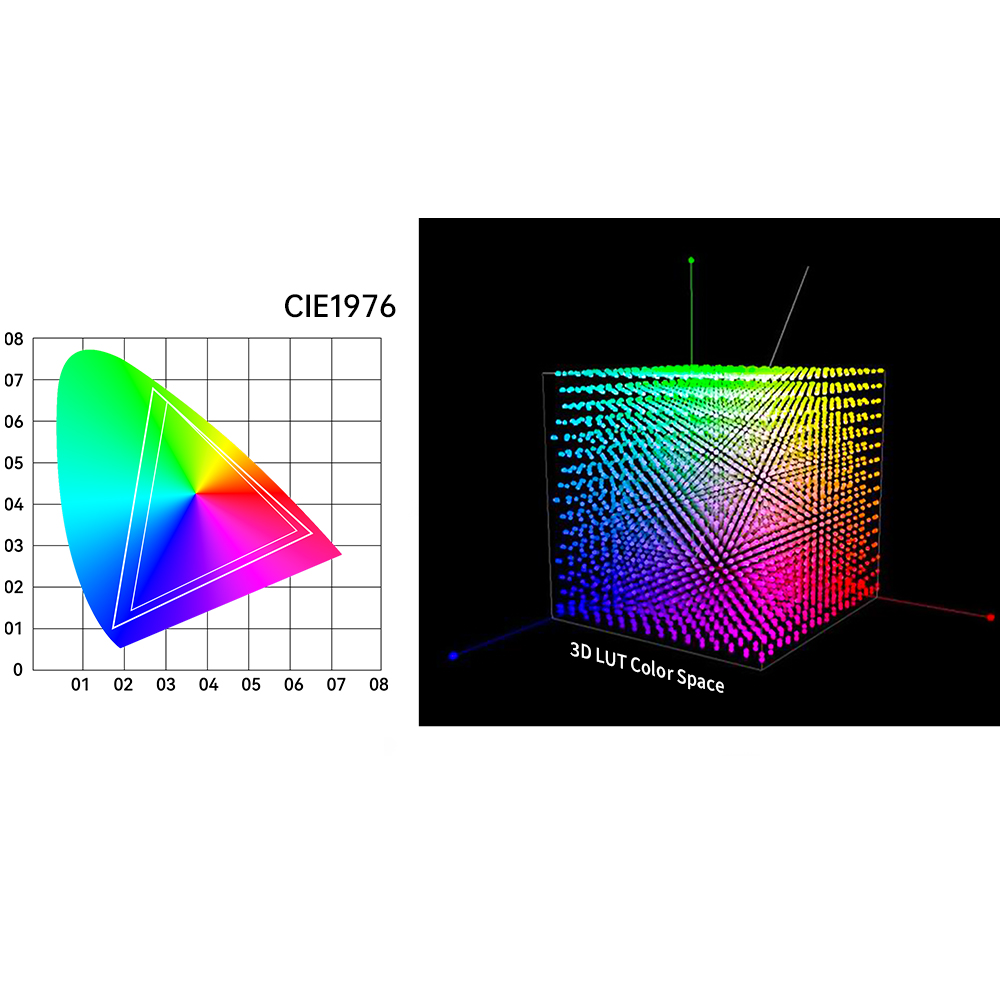

Professional Color, Precise to The End
Each monitor undergoes rigorous panel screening and full-screen color uniformity control, and is individually factory-calibrated using a hardware 3D-LUT, ensuring every frame produced is peak imagery glowing with flawless color.

A Pocket-Size Professional Monitor
The 5.5-inch golden size fits easily into your pocket for convenient on-the-go use, allowing you to set up a professional shooting platform in seconds.

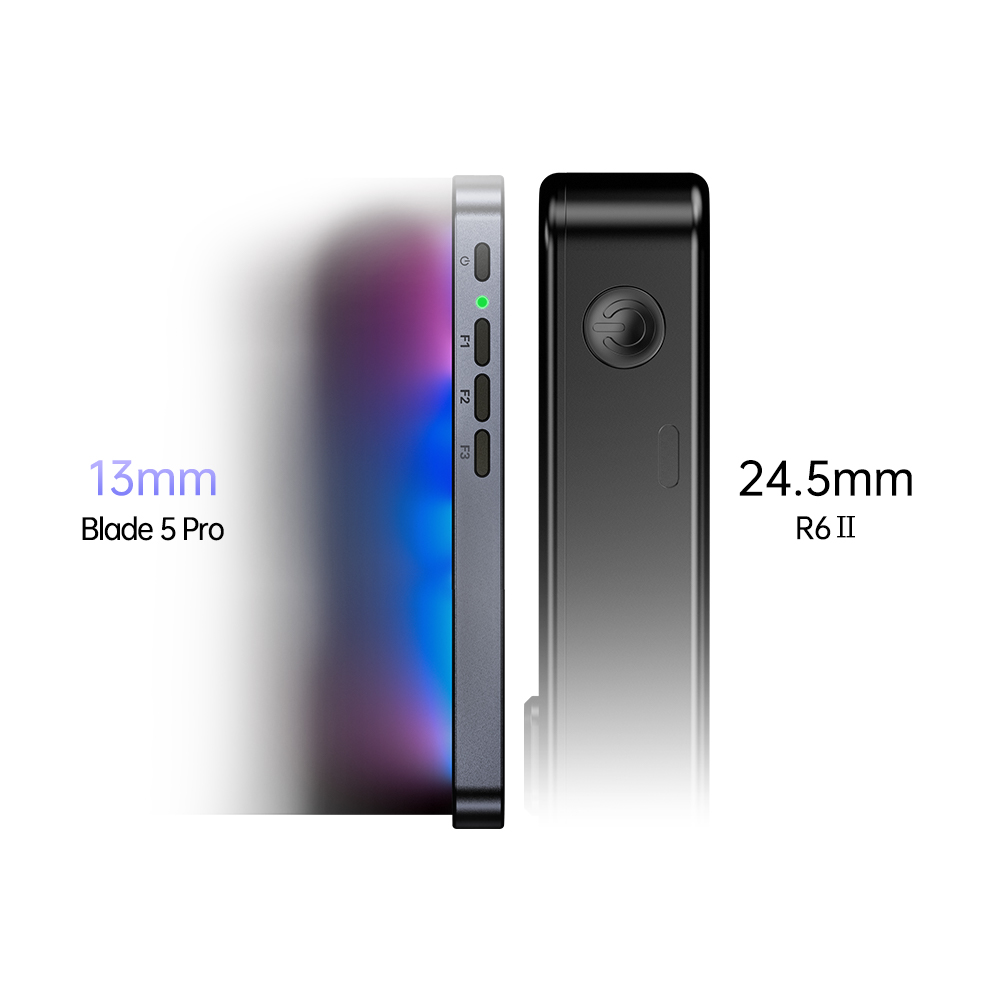

Feather-Weight Body,

Aerospace-Grade Toughness

Blade 5 Pro features a lightweight design with an overall thickness of just 13mm and a weight of 207g. With innovative structural form and lightweight materials at its core, it effectively achieves a lightweight yet powerful performance.



*The weight of Blade 5 Pro is approximately equal to that of iPhone 17 Pro.



1200Nits Peak Brightness,

No Fear of Scorching Sun

With a 1200Nits peak brightness, it confronts the midday glare head-on; the image remains razor-sharp and crystal-clear. When shooting outdoors, shadow detail and highlight gradations are revealed in a single glance.

Custom 3D LUT,

Set Your Cinematic Style Directly
Support built-in LUTs, and you can also upload custom 3D LUT files. View different styles in real-time and achieve better color quality control.

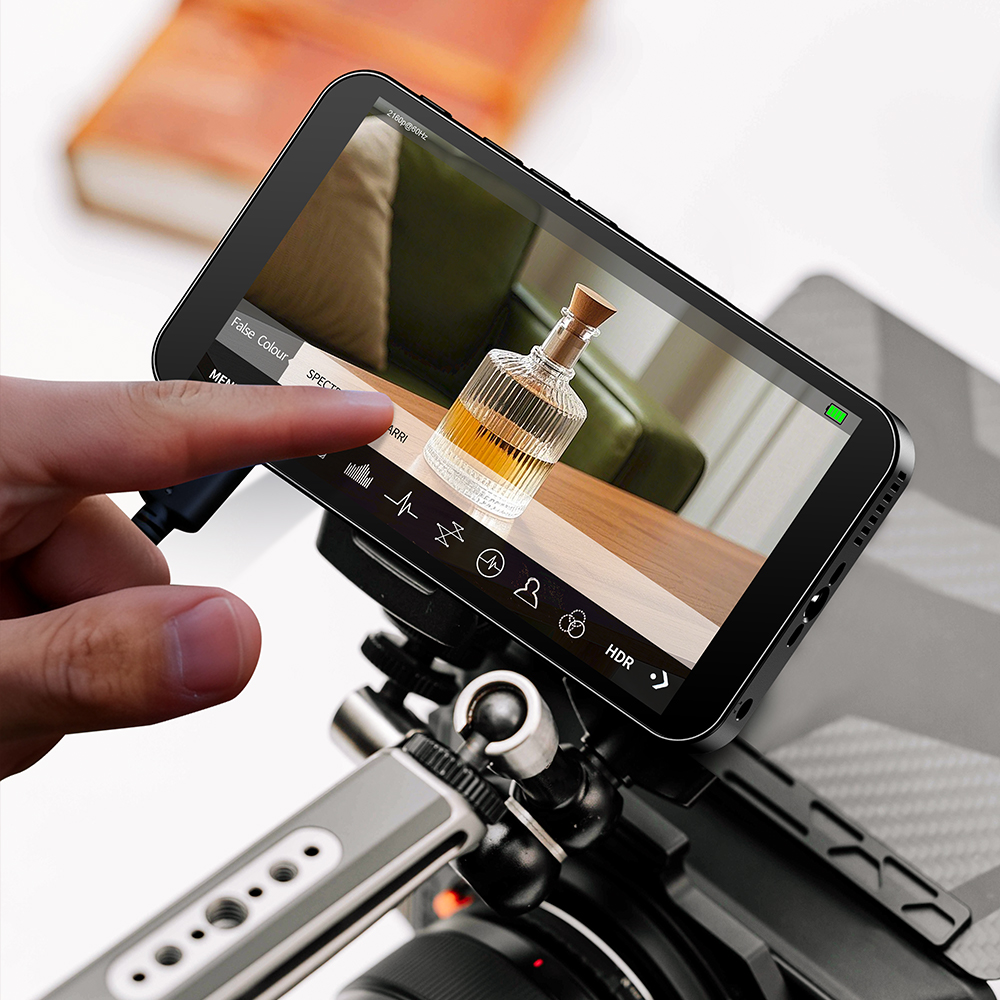

Touch-Responsive Like Your Phone,

Higher Efficiency
Support multi-point capacitive touch with millisecond response. Swipe menus and adjust parameters as intuitively as using a phone—no more button-hunting, faster shooting.

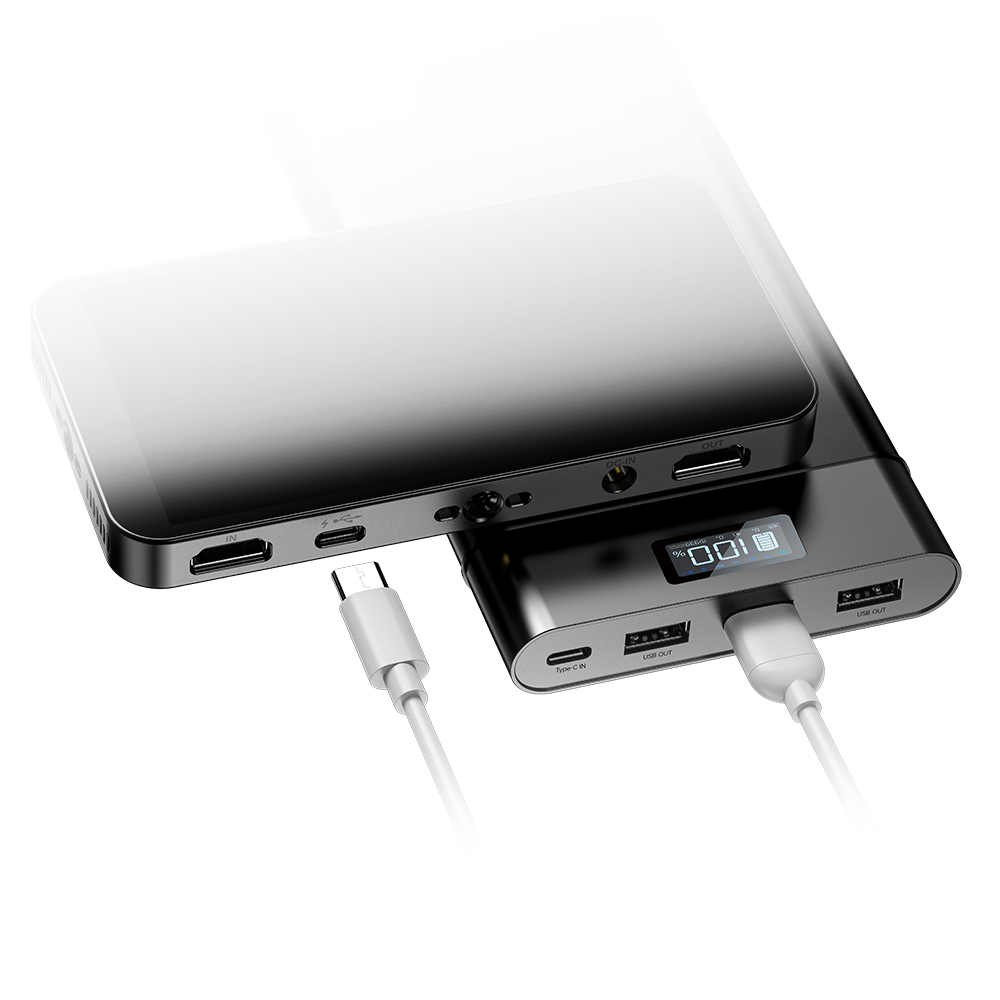

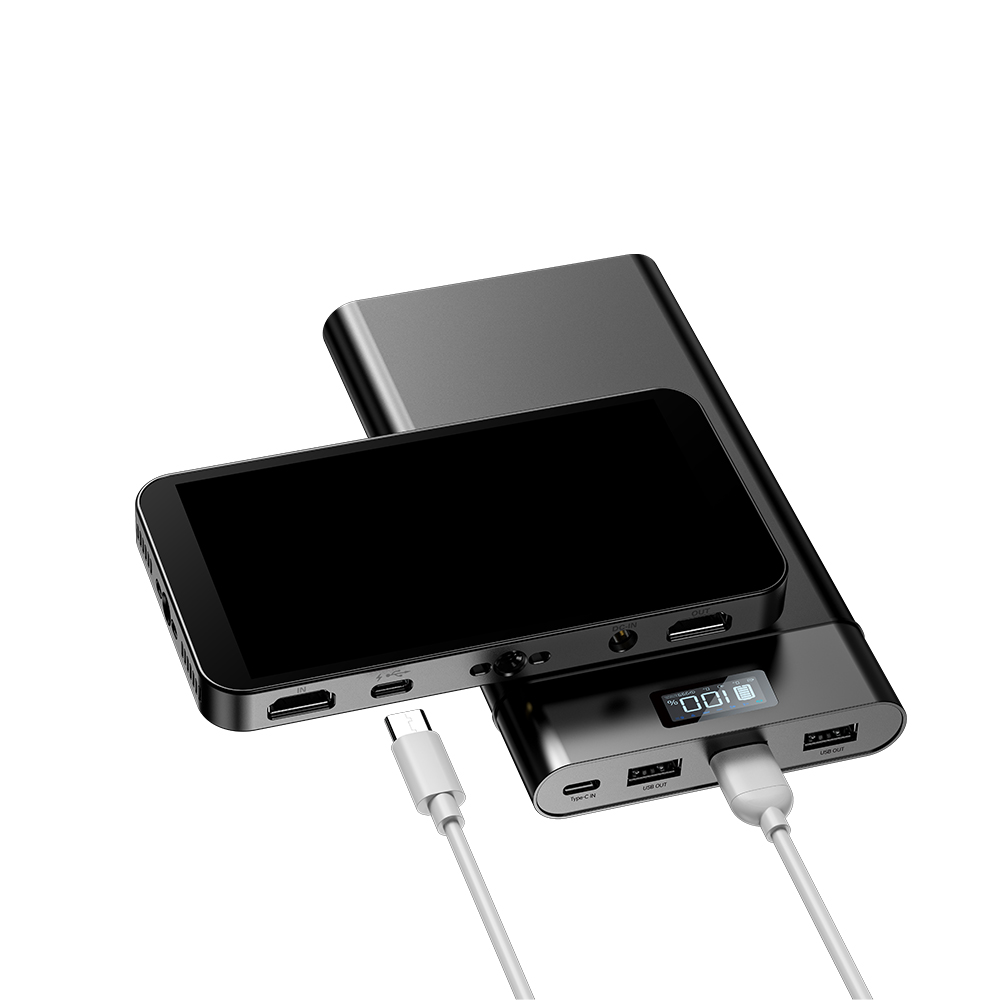

Universal Type-C Power Supply,

Boundless Runtime
Compatible with 5V/2A Type-C, plug into a phone adapter or power bank and ditch proprietary batteries for good. When shooting outdoors,  pair it with a power bank for 24-hour non-stop power supply. Time-lapses and docu-follows can finally stop worrying about battery life.

Exposure Clarity and Precision,

Capture Images Successfully
Built-in histogram, waveform and vector scope tools combined, monitor brightness distribution, contrast ratio, and white balance in real-time. Photographers can quickly judge exposure compensation, highlight and shadow details, avoid overexposure or underexposure, increasing the success rate.

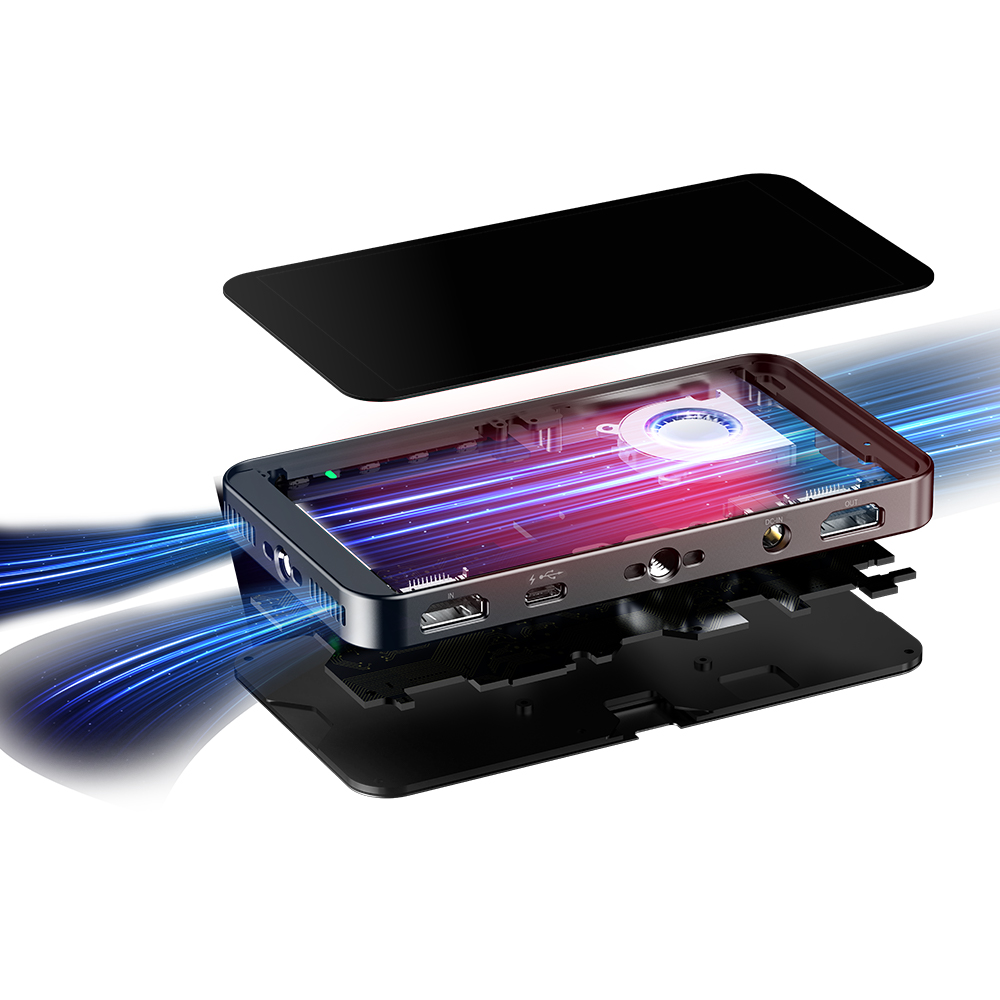

Efficient Heat Dissipation

for Continuous Creation
Aviation-grade aluminum's excellent thermal conductivity delivers outstanding heat dissipation, and it's equipped with a silent fan for cooling, ensure stable and long-duration operation, suitable for high-intensity creative work.

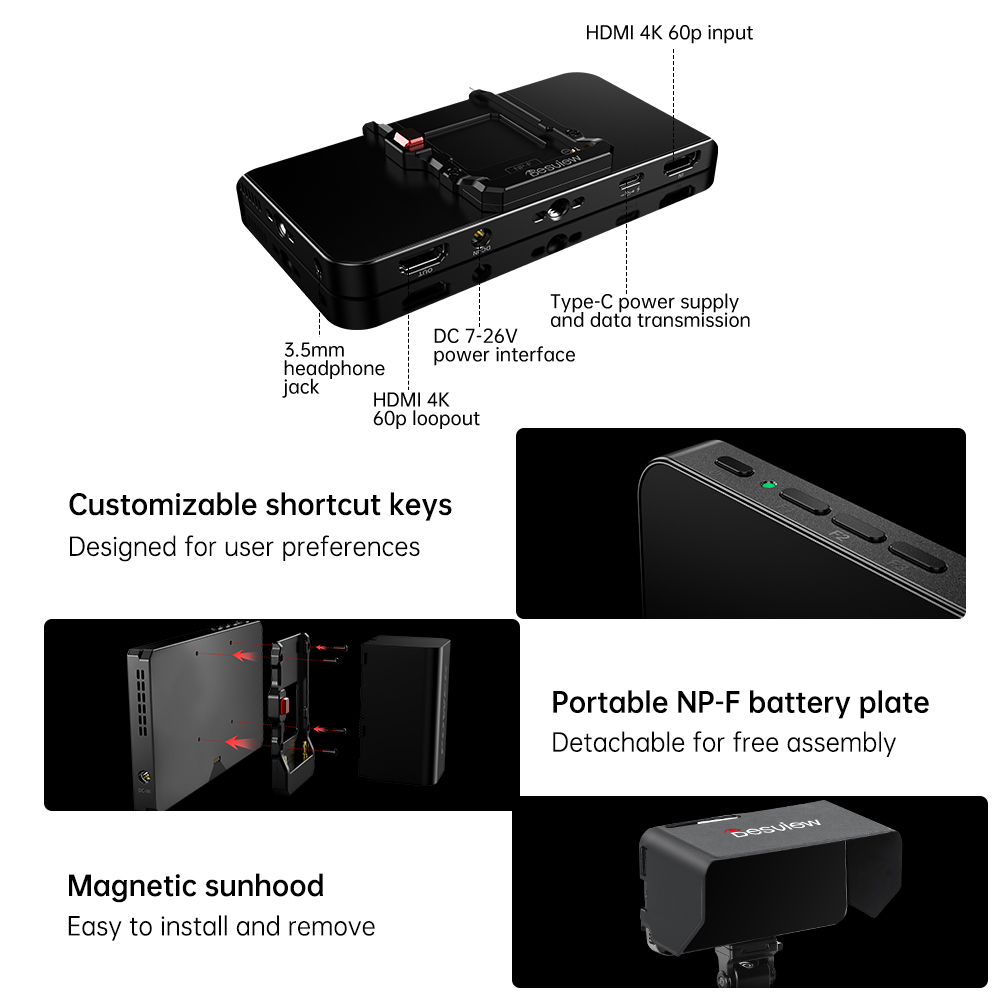

Stable Transmission and

Multi-Device Collaboration
HDMI 2.0 interface supports ultra-high-definition signal transmission at 4K 60p, delivering lossless transmission.

Type-C interface combines power supply with high-speed data transmission, paired with HDMI loopout and headphone monitoring, making multi-device collaboration more efficient.

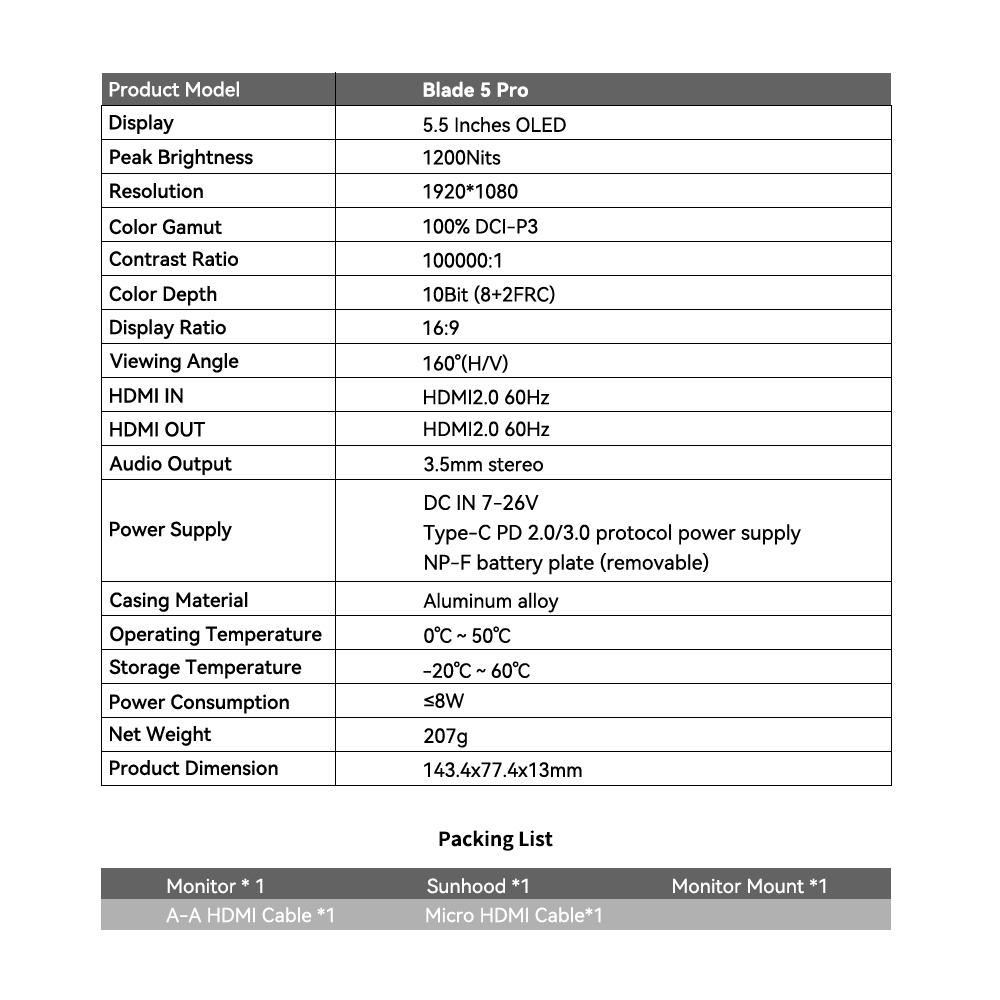

Product Specification



   Product Parameters
Product Model Blade 5 Pro
Display 5.5 inches OLED
Peak Brightness 1200Nits
Resolution 1920x1080
Color Gamut 100% DCI-P3
Contrast Ratio 100000:1
Color Depth 10Bit (8+2FRC)
Display Ratio 16:9
Viewing Angle 160° (H/V)
HDMI IN HDMI2.0 60Hz
HDMI OUT HDMI2.0 60Hz
Audio Output 3.5mm stereo
Power Supply DC IN 7-26V
Type-C PD 2.0/3.0 protocol power supply
NP-F battery plate (removable)
Casing Material Aluminum alloy
Operating Temperature 0℃~50℃
Storage Temperature -20℃~60℃
Power Consumption ≤8W
Net Weight 207g
Product Dimension 143.4x77.4x13mm
Packing List

Monitor * 1

Sunhood * 1

Monitor Mount *1
A-A HDMI Cable * 1

Micro HDMI Cable * 1
